• 4コーナ設計: 対称の4つの切れ刃により、切削効率と仕上げ面のバランスが取れ、中仕上げから仕上げ加工に適しています。
• 高度な研削技術により、超高精度の刃径とシャンク径精度を実現し、精密金型や部品加工に適しています。
• 耐摩耗性の高いコーティングを採用しています。アーク転移構造により高い耐折損性を確保し、高硬度鋼の長期切削を可能にします。

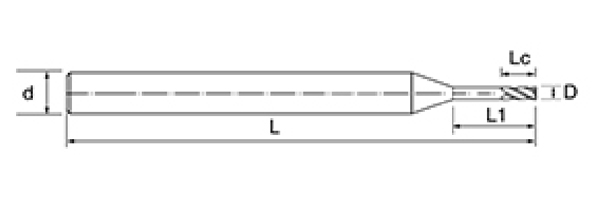

| いいえ。 | 直径 D | 刃長さ LC | 有効長 L1 | 全長 L | シャンク径 d | 刃数 F |
| NNC-4TSP-D1-L4 | 1 | 1 | 4 | 50 | 4 | 4 |
| NNC-4TSP-D1-L6 | 1 | 1 | 6 | 50 | 4 | 4 |
| NNC-4TSP-D1-L8 | 1 | 1 | 8 | 50 | 4 | 4 |
| NNC-4TSP-D1-L10 | 1 | 1 | 10 | 50 | 4 | 4 |
| NNC-4TSP-D1-L12 | 1 | 1 | 12 | 50 | 4 | 4 |
| NNC-4TSP-D1-L16 | 1 | 1 | 16 | 50 | 4 | 4 |
| NNC-4TSP-D1-L20 | 1 | 1 | 20 | 50 | 4 | 4 |
| NNC-4TSP-D1.5-L6 | 1.5 | 1.5 | 6 | 50 | 4 | 4 |
| NNC-4TSP-D1.5-L8 | 1.5 | 1.5 | 8 | 50 | 4 | 4 |
| NNC-4TSP-D1.5-L10 | 1.5 | 1.5 | 10 | 50 | 4 | 4 |
| NNC-4TSP-D1.5-L12 | 1.5 | 1.5 | 12 | 50 | 4 | 4 |
| NNC-4TSP-D1.5-L14 | 1.5 | 1.5 | 14 | 50 | 4 | 4 |
| NNC-4TSP-D1.5-L16 | 1.5 | 1.5 | 16 | 50 | 4 | 4 |
| NNC-4TSP-D1.5-L18 | 1.5 | 1.5 | 18 | 50 | 4 | 4 |
| NNC-4TSP-D1.5-L20 | 1.5 | 1.5 | 20 | 50 | 4 | 4 |
| NNC-4TSP-D2-L8 | 2 | 2 | 8 | 50 | 4 | 4 |
| NNC-4TSP-D2-L10 | 2 | 2 | 10 | 50 | 4 | 4 |
| NNC-4TSP-D2-L12 | 2 | 2 | 12 | 50 | 4 | 4 |
| NNC-4TSP-D2-L14 | 2 | 2 | 14 | 50 | 4 | 4 |
| NNC-4TSP-D2-L16 | 2 | 2 | 16 | 50 | 4 | 4 |
| NNC-4TSP-D2-L18 | 2 | 2 | 18 | 50 | 4 | 4 |
| NNC-4TSP-D2-L20 | 2 | 2 | 20 | 50 | 4 | 4 |
| NNC-4TSP-D2.5-L10 | 2.5 | 2.5 | 10 | 50 | 4 | 4 |
| NNC-4TSP-D2.5-L12 | 2.5 | 2.5 | 12 | 50 | 4 | 4 |
| NNC-4TSP-D2.5-L16 | 2.5 | 2.5 | 16 | 50 | 4 | 4 |
| NNC-4TSP-D3-L10 | 3 | 3 | 10 | 50 | 4 | 4 |
| NNC-4TSP-D3-L12 | 3 | 3 | 12 | 50 | 4 | 4 |
| NNC-4TSP-D3-L16 | 3 | 3 | 16 | 50 | 4 | 4 |
| NNC-4TSP-D3-L20 | 3 | 3 | 20 | 60 | 6 | 4 |
| NNC-4TSP-D3-L25 | 3 | 3 | 25 | 75 | 6 | 4 |
| NNC-4TSP-D3-L30 | 3 | 3 | 30 | 75 | 6 | 4 |
| NNC-4TSP-D4-L15 | 4 | 4 | 15 | 50 | 6 | 4 |
| NNC-4TSP-D4-L20 | 4 | 4 | 20 | 60 | 6 | 4 |
| NNC-4TSP-D4-L25 | 4 | 4 | 25 | 75 | 6 | 4 |
| NNC-4TSP-D4-L30 | 4 | 4 | 30 | 75 | 6 | 4 |
| NNC-4TSP-D4-L35 | 4 | 4 | 35 | 75 | 6 | 4 |
| ツールシリーズ | 直径 | 半径 | コーナー半径 | 刃長さ | 有効長 | 全長 | シャンク径 | |||
| D | R | CR | LC | L1 | L | d | ||||
| NNC ユニバーサル超硬フライス | D0.1~D0.9 | 0 -0.005 | R0.05~R2 | /-0.005 | CR0.05~CR0.5 | /-0.005 | 0 0.2 | 0 0.3 | 0 0.5 | h5 |
| D1.0~D4.0 | 0 -0.008 | 0 0.3 | 0 0.5 | |||||||
| D1.0〜D3.5 | 0 -0.008 | R0.5~R1.75 | /-0.005 | CR0.1~CR0.5 | /-0.005 | 0 0.3 | 0 0.5 | 0 0.5 | h6 | |
| D4.0〜D11.0 | 0 -0.012 | R2.0~R5.0 | /-0.008 | CR1.0~CR3.0 | /-0.008 | 0 0.5 | ||||
| D12.0〜D20.0 | 0 -0.015 | R6.0~R10.0 | /-0.01 | |||||||

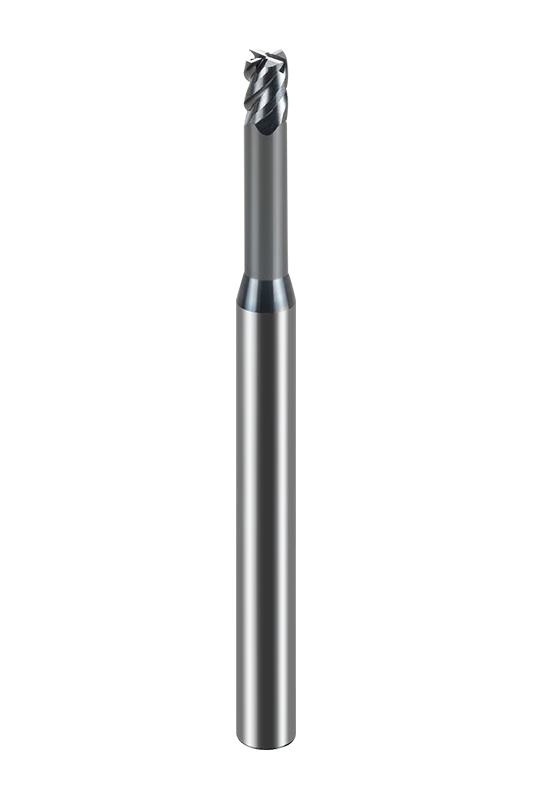

NNC-4TSP 4枚刃深溝フラットヘッドエンドミルは、2枚刃や3枚刃フライスと比べ、より高い切削効率と安定性を実現します。
深溝設計は深い溝や狭い溝などの加工に適しており、切りくずを効果的に除去し、切削抵抗を低減します。底面が平らなフラットヘッド形状で、平面や直角段差の加工に適しています。
NNC-4TSP 4 枚刃深溝フラットヘッドエンドミルは、さまざまな加工要件に対応するためにさまざまなサイズを用意しています。一般的に使用される直径の範囲は 1 mm から 4 mm で、1×4、2×8、4×20 などのさまざまな溝長と切削長があり、仕上げ加工と荒加工を切り替えることができ、効率的で正確です。精密研削技術と最新のクロム・アルミニウム複合コーティング技術を採用し、優れた耐摩耗性と汎用性を実現しています。
企業設立
従業員

Changzhou Maton Tools Co.,Ltd. is located in the economically developed Yangtze River Delta region.The factory is located in XixiashuHigh-tech Development Zone,a well-known tool town in China. We are 4枚刃深溝フラットヘッドエンドミル Manufacturers.
Magotantools take the ISO9001 quality system as the standard,under the guidanceof the business philosophy of"zero defect in products"and"zero distance in service",based on the spirit of"integrity","unity"and"exploita- tion",and follow a fair and just company style for management.Product production adopts five-axisand six-axis CNC grinding and machining centers from Germany,Switzerland,Japan,etc.,and is equipped with high-precision testing equipment such as Germany,Japan,and China,so as to meet the needs of production with high quality and quantity.
The company continuously develops various high-performance CNC tools, and has won various national awards. Professional 4枚刃深溝フラットヘッドエンドミル Company. More than 10 patents,the company's products are mainly used in the defense industry, aerospace industry,automotive industry,electronic products and molds and other fields.
The company's various products are recognized and favored by well-known domestic companies.With infinite technology,infinite creation,and pursuit of excellence,Magotan tools will write future prosperity and dreams with more extraordinary confidence and high-quality quality.
お問い合わせをいただいてから平日12時間以内にご返信させていただきます。
当社はメーカーであり、自社で製造、販売しています。
We mainly produce tungsten steel milling cutters, drill bits and other hard alloy tools. Professional 4枚刃深溝フラットヘッドエンドミル Manufacturers.
当社の製品は、金型産業、防衛産業、航空宇宙産業、自動車産業、電子製品およびその他の分野のほぼ全体をカバーしています。
Yes, our main focus is on customized products. We develop and produce products based on the drawings or samples provided by customers. Custom 4枚刃深溝フラットヘッドエンドミル.
We have over 30 units of WALTER from Germany, Makino from Japan, ROLLMATIC from Switzerland, and TTB from Switzerland, with an annual output value of 80 million RMB. We are 4枚刃深溝フラットヘッドエンドミル Company
まず、各工程後にそれぞれの検査を実施します。最終製品については、お客様の要件と国際基準に従って全数検査を実施します。
また、スペクトル分析装置や金属顕微鏡など、業界で最先端かつ完全なトップクラスの試験装置を備えており、切削工具の安定性と一貫性を確保しながら、お客様の切削工具に対する高精度の試験要件に応えます。
お見積りの際、取引方法(FOB、CIF、CNF、その他オプション)を確認させていただきます。大量生産の場合、通常、最初に30%を前払いし、船荷証券の提示時に残りの残金を支払います。支払い方法は主にT/Tを使用しますが、L/Cも受け付けます。
