Custom 4枚刃不等歯ピッチサーキュラエンドミルステンレスフライス

ホーム / 製品 / 超硬ソリッドエンドミル / NNB ステンレス鋼加工用超硬エンドミル / 4枚刃不等歯ピッチサーキュラエンドミルステンレスフライス

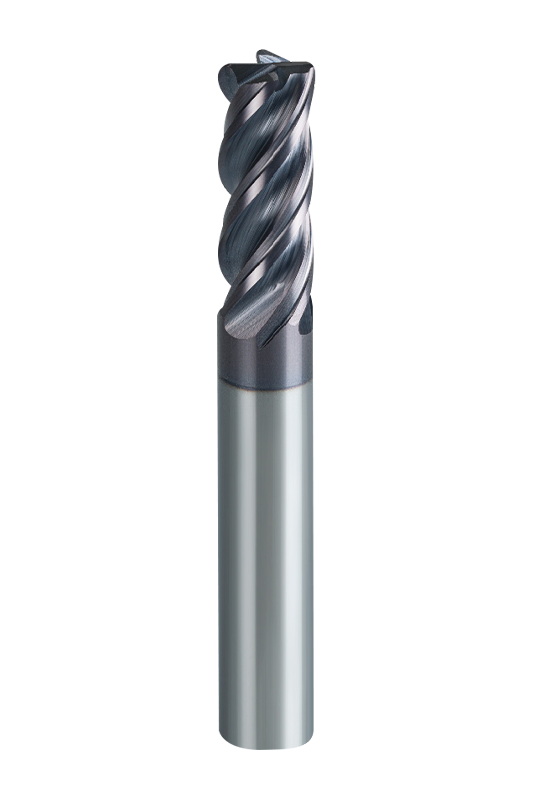

4枚刃不等歯ピッチサーキュラエンドミルステンレスフライス

4枚刃不等歯ピッチサーキュラエンドミルステンレスフライス

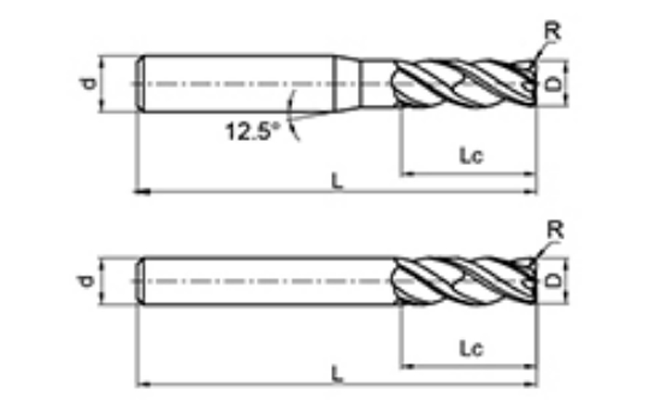

いいえ。

直径

D

R角度

R

刃長さ

LC

全長

L

シャンク径

d

刃数

F

NNB-4R-D4-R0.2 4 0.2 10 50 4 4
NNB-4R-D4-R0.5 4 0.5 10 50 4 4
NNB-4R-D5-R0.5 5 0.5 13 50 6 4
NNB-4R-D5-R1 5 1 13 50 6 4
NNB-4R-D6-R0.5 6 0.5 15 50 6 4
NNB-4R-D6-R1 6 1 15 50 6 4
NNB-4R-D8-R0.5 8 0.5 20 60 8 4
NNB-4R-D8-R1 8 1 20 60 8 4
NNB-4R-D10-R0.5 10 0.5 25 75 10 4
NNB-4R-D10-R1 10 1 25 75 10 4
NNB-4R-D10-R2 10 2 25 75 10 4
NNB-4R-D10-R3 10 3 25 75 10 4
NNB-4R-D12-R0.5 12 0.5 30 75 12 4
NNB-4R-D12-R1 12 1 30 75 12 4
NNB-4R-D12-R2 12 2 30 75 12 4
NNB-4R-D12-R3 12 3 30 75 12 4
NNB-4R-D16-R1 16 1 45 100 16 4
NNB-4R-D16-R2 16 2 45 100 16 4
NNB-4R-D16-R3 16 3 45 100 16 4
NNB-4R-D20-R1 20 1 45 100 20 4
NNB-4R-D20-R2 20 2 45 100 20 4
NNB-4R-D20-R3 20 3 45 100 20 4

加工品 鋳鉄、炭素鋼、合金鋼
~30HRC
ステンレス鋼 プリハードン鋼、焼き入れ焼き戻し鋼
~40HRC
プリハードン鋼、焼き入れ焼き戻し鋼
~50HRC
硬化鋼
~55HRC
直径
(mm)
回転速度
(分⁻¹)
送り速度
(mm/分)
回転速度
(分⁻¹)
送り速度
(mm/分)
回転速度
(分⁻¹)
送り速度
(mm/分)
回転速度
(分⁻¹)
送り速度
(mm/分)
回転速度
(分⁻¹)
送り速度
(mm/分)
3 15900 1460 8500 215 13270 1140 10600 755 7430 430
4 11900 1510 6370 225 9950 1160 8000 770 570 440
5 9500 1620 5060 225 7960 1210 6400 810 4460 465
6 7900 1590 4250 250 6630 1235 5300 825 3710 465
8 5900 1590 3180 250 4970 1220 4000 815 2785 485
10 4700 157 2550 250 3980 1210 3200 810 2230 450
12 4000 1570 2120 250 3310 1210 2650 810 1855 450
14 3400 1460 1820 215 2840 1130 2300 755 1590 430
16 3000 1460 1590 215 2480 1130 2000 755 1390 430
18 2600 1440 1410 190 2210 1115 1800 740 1240 420
20 2400 1440 1270 190 1990 1115 1600 740 1115 420

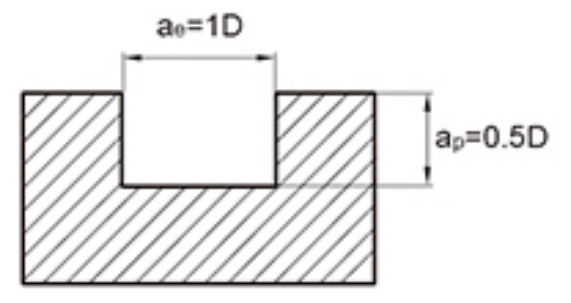

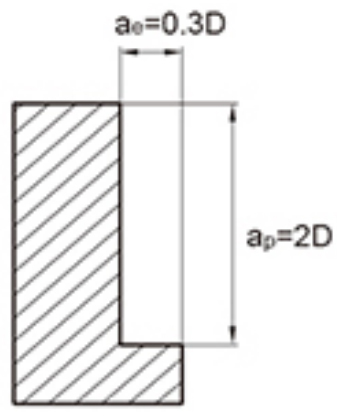

最大切り込み深さ

1. 上表は側面フライス加工の標準値を示します。工具で溝を切削する場合、速度は上表の60%~80%、送り速度は50%~70%を目安としてください。
2. 工作機械や工具ホルダは高精度なものを使用してください。
3.空冷または切削油は発煙の少ないものを使用してください。
4. 側面加工には逐次加工を推奨します。
5. 工作機械やワークの取り付けが悪いと、振動や異音が発生する場合があります。この場合、上表の速度と送り速度を前年より下げる必要があります。
6. 干渉しないように工具の突き出しを可能な限り最小限に抑えます。
