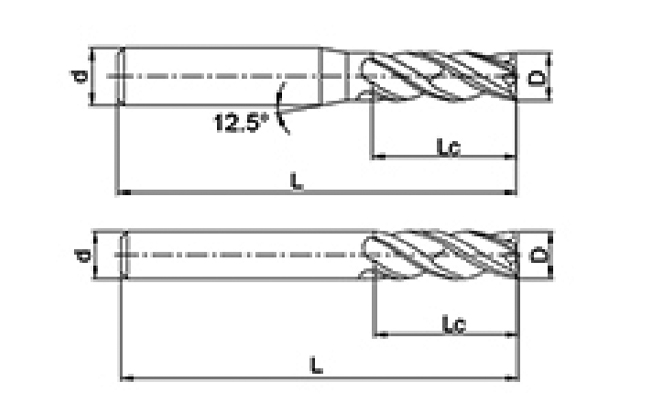

| いいえ。 | 直径 D | 刃長さ LC | 全長 L | シャンク径 d | 刃数 F |
| NNB-4T-D4 | 4 | 12 | 50 | 4 | 4 |
| NNB-4T-D4 | 4 | 12 | 50 | 4 | 4 |
| NNB-4T-D5 | 5 | 13 | 50 | 6 | 4 |
| NNB-4T-D6 | 6 | 18 | 50 | 6 | 4 |
| NNB-4T-D7 | 7 | 20 | 60 | 8 | 4 |
| NNB-4T-D8 | 8 | 24 | 60 | 8 | 4 |
| NNB-4T-D9 | 9 | 25 | 75 | 10 | 4 |
| NNB-4T-D10 | 10 | 30 | 75 | 10 | 4 |
| NNB-4T-D11 | 11 | 30 | 75 | 12 | 4 |
| NNB-4T-D12 | 12 | 30 | 75 | 12 | 4 |
| NNB-4T-D14 | 14 | 35 | 100 | 14 | 4 |
| NNB-4T-D16 | 16 | 45 | 100 | 16 | 4 |
| NNB-4T-D18 | 18 | 45 | 100 | 18 | 4 |
| NNB-4T-D20 | 20 | 50 | 100 | 20 | 4 |
| 加工品 | 鋳鉄、炭素鋼、合金鋼 ~30HRC | ステンレス鋼 | プリハードン鋼、焼き入れ焼き戻し鋼 ~40HRC | プリハードン鋼、焼き入れ焼き戻し鋼 ~50HRC | 硬化鋼 ~55HRC | |||||
| 直径 (mm) | 回転速度 (分⁻¹) | 送り速度 (mm/分) | 回転速度 (分⁻¹) | 送り速度 (mm/分) | 回転速度 (分⁻¹) | 送り速度 (mm/分) | 回転速度 (分⁻¹) | 送り速度 (mm/分) | 回転速度 (分⁻¹) | 送り速度 (mm/分) |
| 3 | 15900 | 1220 | 8500 | 180 | 13270 | 950 | 10600 | 630 | 7430 | 360 |
| 4 | 11900 | 1260 | 6370 | 190 | 9950 | 970 | 8000 | 645 | 570 | 370 |
| 5 | 9500 | 1350 | 5060 | 190 | 7960 | 1010 | 6400 | 675 | 4460 | 390 |
| 6 | 7900 | 1330 | 4250 | 210 | 6630 | 1030 | 5300 | 690 | 3710 | 390 |
| 8 | 5900 | 1330 | 3180 | 210 | 4970 | 1020 | 4000 | 680 | 2785 | 405 |
| 10 | 4700 | 1310 | 2550 | 210 | 3980 | 1010 | 3200 | 675 | 2230 | 375 |
| 12 | 4000 | 1310 | 2120 | 210 | 3310 | 1010 | 2650 | 675 | 1855 | 375 |
| 14 | 3400 | 1220 | 1820 | 180 | 2840 | 945 | 2300 | 630 | 1590 | 360 |
| 16 | 3000 | 1220 | 1590 | 180 | 2480 | 945 | 2000 | 630 | 1390 | 360 |
| 18 | 2600 | 1200 | 1410 | 160 | 2210 | 930 | 1800 | 620 | 1240 | 350 |
| 20 | 2400 | 1200 | 1270 | 160 | 1990 | 930 | 1600 | 620 | 1115 | 350 |

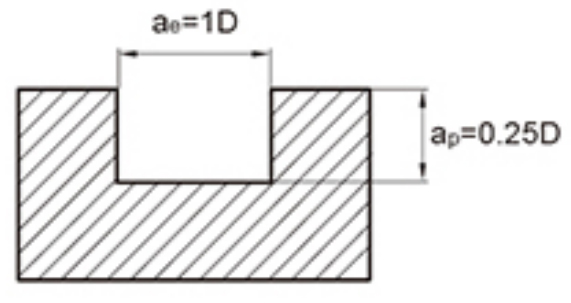

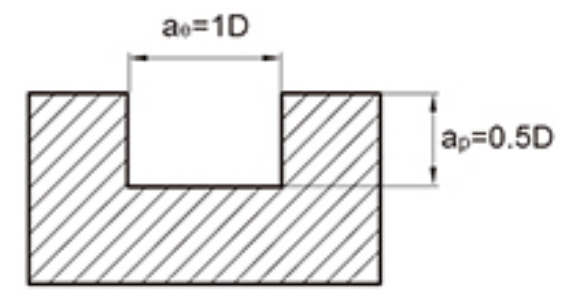

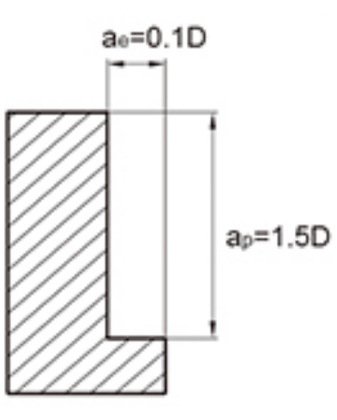

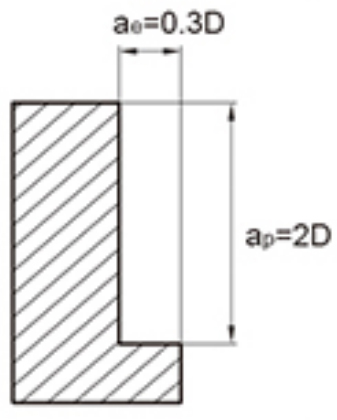

| 最大切り込み深さ | | | ||||||||
| | |||||||||
1. 上表は側面フライス加工の標準値を示します。工具で溝を切削する場合、速度は上表の60%~80%、送り速度は50%~70%を目安としてください。
2. 工作機械や工具ホルダは高精度なものを使用してください。
3.空冷または切削油は発煙の少ないものを使用してください。
4. 側面加工には逐次加工を推奨します。
5. 工作機械やワークの取り付けが悪いと、振動や異音が発生する場合があります。この場合、上表の速度と送り速度を前年より下げる必要があります。
6. 干渉しないように工具の突き出しを可能な限り最小限に抑えます。
| ツールシリーズ | 直径 | 半径 | コーナー半径 | 刃長さ | 有効長 | 全長 | シャンク径 | |||
| D | R | CR | LC | L1 | L | d | ||||
| NNB ステンレス鋼加工用超硬エンドミル | D0.5〜D3.5 | 0 -0.012 | R0.5~R1.75 | /-0.005 | CR0.2~CR0.5 | /-0.005 | 0 0.5 | 0 0.5 | 0.5 -0.5 | h5 |
| D4.0〜D10.0 | 0 -0.015 | R2.0~R5.0 | /-0.008 | CR1.0~CR5.0 | /-0.008 | |||||
| D12.0~D20.0 | 0 -0.018 | R6.0~R10.0 | /-0.01 | |||||||

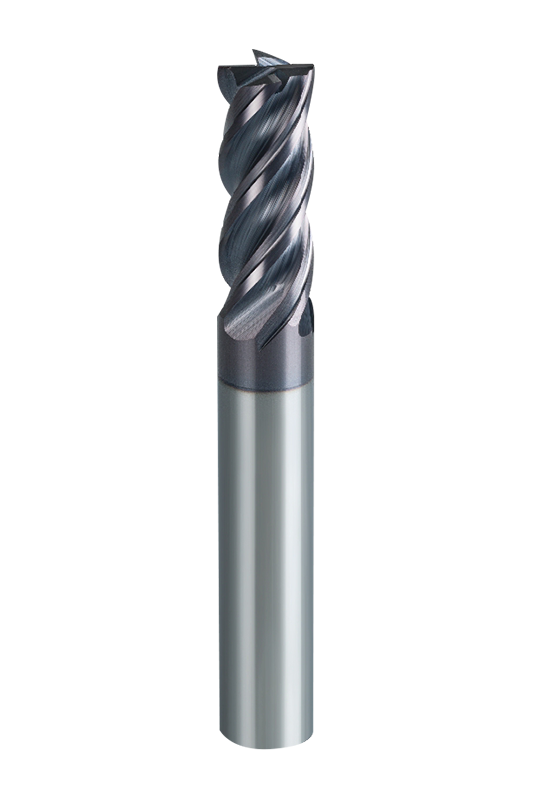

ステンレス鋼加工用4枚刃不等歯ピッチエンドミルシリーズ(NNB-4T)は、カッター径4mmから20mmまでの幅広い仕様を揃え、さまざまな組み合わせでさまざまな加工ニーズに対応します。精密な小物加工から大規模な切削加工まで、さまざまな用途に合わせた柔軟な構成で、適切なモデルが見つかります。
不等歯ピッチ設計により切削振動を効果的に低減し、加工安定性を向上させます。平底設計により、切りくず除去性能を最適化しながら底面の高精度加工が保証され、効率的な加工中も工具の切れ味と耐久性を維持できます。
0.5μmの高靱性耐チッピング材を使用し、38°/41°のねじれ角と組み合わせることで、切削プロセスがよりスムーズになり、切削抵抗が低減され、工具寿命が延長されます。高性能ステンレス鋼特有のコーティングにより耐摩耗性と耐酸化性が向上し、長時間の加工でも効率的な性能を維持します。
ステンレス鋼加工に最適化されており、SUS304、316、316Lなどの材質に適しています。また、プリハードン鋼(35~45HRC)、焼き入れ鋼(45~55HRC)、チタン合金(Ti-6Al-4V)などへの適応性にも優れ、様々な高強度材料の高品位な切削を実現します。
