2枚刃ボールエンドミル Manufacturers

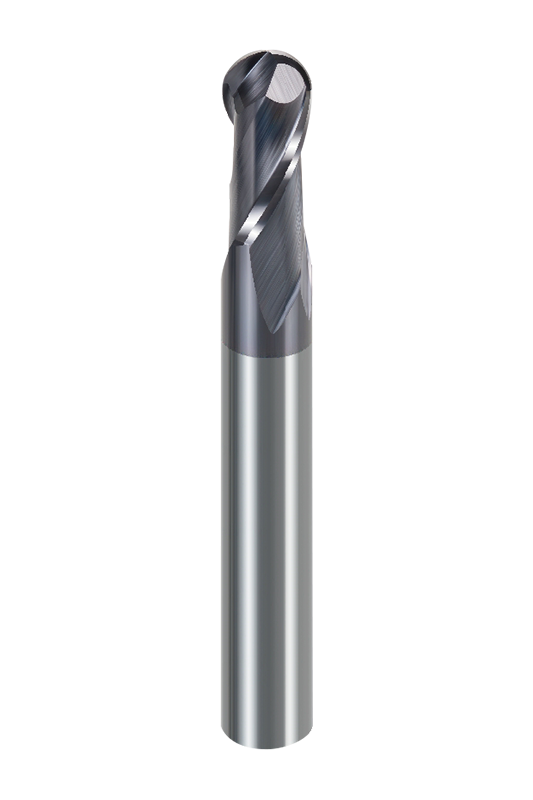

2枚刃ボールエンドミル

2枚刃ボールエンドミル

• 万能フライスは、あらゆるシリーズの鋼材の熱処理に適しています。 U溝構造設計で荒加工から仕上げ加工まで対応します。
• 非鉄・アルミ材の加工にも適しています。充実した仕様とモデルがあり、幅広い用途に対応できます。

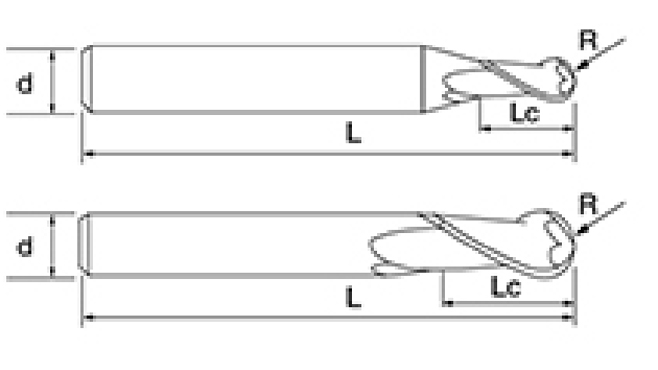

いいえ。

直径

D

R角度

R

刃長さ

LC

全長

L

シャンク径

d

刃数

F

NNC-2B-D1 1 0.5 2 50 4 2
NNC-2B-D1 1 0.5 2 50 6 2
NNC-2B-D1.5 1.5 0.75 3 50 4 2
NNC-2B-D1.5 1.5 0.75 3 50 6 2
NNC-2B-D2 2 1 4 50 4 2
NNC-2B-D2 2 1 4 50 6 2
NNC-2B-D2.5 2.5 1.25 5 50 4 2
NNC-2B-D2.5 2.5 1.25 5 50 6 2
NNC-2B-D3 3 1.5 6 50 3 2
NNC-2B-D3 3 1.5 6 50 4 2
NNC-2B-D3 3 1.5 6 50 6 2
NNC-2B-D3.5 3.5 1.75 8 50 4 2
NNC-2B-D3.5 3.5 1.75 8 50 6 2
NNC-2B-D4 4 2 8 50 4 2
NNC-2B-D4 4 2 8 50 6 2
NNC-2B-D4 4 2 8 75 4 2
NNC-2B-D4 4 2 8 100 4 2
NNC-2B-D5 5 2.5 10 50 5 2
NNC-2B-D5 5 2.5 10 50 6 2
NNC-2B-D6 6 3 12 50 6 2
NNC-2B-D6 6 3 12 75 6 2
NNC-2B-D6 6 3 12 100 6 2
NNC-2B-D8 8 4 16 60 8 2
NNC-2B-D8 8 4 16 75 8 2
NNC-2B-D8 8 4 16 100 8 2
NNC-2B-D10 10 5 20 75 10 2
NNC-2B-D10 10 5 20 100 10 2
NNC-2B-D10 10 5 20 150 10 2
NNC-2B-D12 12 6 24 75 12 2
NNC-2B-D12 12 6 24 100 12 2
NNC-2B-D12 12 6 24 150 12 2
NNC-2B-D16 16 8 32 100 16 2
NNC-2B-D20 20 10 40 100 20 2

加工品 鋳鉄
ダクタイル鋳鉄
炭素鋼、合金鋼
~750N/mm²
炭素鋼、合金鋼
~30HRC
プリハードン鋼、焼き入れ焼き戻し鋼
~40HRC
ステンレス鋼 プリハードン鋼、焼き入れ焼き戻し鋼
~50HRC
直径
(mm)
回転速度
(分 -1 )
送り速度
(mm/分)
回転速度
(分 -1 )
送り速度
(mm/分)
回転速度
(分 -1 )
送り速度
(mm/分)
回転速度
(分 -1 )
送り速度
(mm/分)
回転速度
(分 -1 )
送り速度
(mm/分)
回転速度
(分 -1 )
送り速度
(mm/分)
R0.5 40000 800 40000 800 38000 700 32000 320 22300 200 25000 275
R1.0 24000 900 24000 900 19000 760 16000 400 11150 230 13000 275
R1.5 15500 950 15500 950 12750 760 10600 450 7400 290 8500 280
R2.0 11500 950 11500 950 9550 760 8000 550 5550 370 6500 370
R2.5 9500 1050 9500 1050 7650 800 6400 550 4450 370 5000 375
R3.0 8000 1050 8000 1050 6400 800 5300 580 3700 390 4200 390
R4.0 6000 1300 6000 1300 4800 950 4000 700 2750 455 3200 440
R5.0 4800 1200 4800 1200 3800 900 3200 650 2200 430 2500 440
R6.0 4000 1100 4000 1100 3200 840 2650 610 1850 430 2100 420
R8.0 3000 1050 3000 1050 2400 800 2000 600 1350 380 1600 375
R10.0 2400 950 2400 950 1900 680 1600 560 1100 370 1250 330

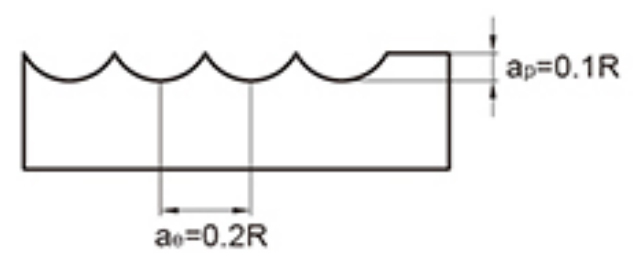

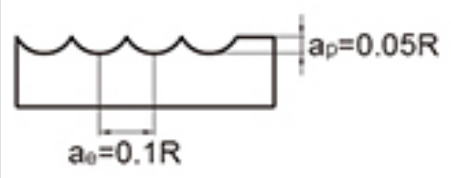

最大切り込み深さ

1. 工作機械や工具ホルダは高精度なものを使用してください。
2. 空冷または切削油は発煙の少ないものを使用してください。
3. 側面加工には逐次加工を推奨します。
4. 工作機械やワークの取り付け剛性が低い場合、振動や異音が発生する場合があります。この場合、上表の速度と送り速度を前年より下げる必要があります。
5. 工具の吊り下げ長さは干渉しない範囲で可能な限り短くしてください。
