• 高度な研削技術により、超高精度の刃径とシャンク径精度を実現し、精密金型や部品加工に適しています。
• 耐摩耗性の高いコーティングを採用しています。アーク転移構造により高い耐折損性を確保し、高硬度鋼の長期切削を可能にします。

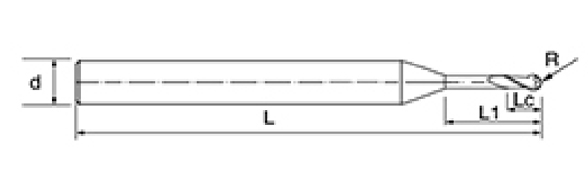

| いいえ。 | 直径 D | R角度 R | 刃長さ LC | 有効長 L1 | 全長 L | シャンク径 d | 刃数 F |
| NNCH-2BSP-D1-L4 | 1 | 0.5 | 1 | 4 | 50 | 4 | 2 |
| NNCH-2BSP-D1-L6 | 1 | 0.5 | 1 | 6 | 50 | 4 | 2 |
| NNCH-2BSP-D1-L8 | 1 | 0.5 | 1 | 8 | 50 | 4 | 2 |
| NNCH-2BSP-D1-L10 | 1 | 0.5 | 1 | 10 | 50 | 4 | 2 |
| NNCH-2BSP-D1-L12 | 1 | 0.5 | 1 | 12 | 50 | 4 | 2 |
| NNCH-2BSP-D1.5-L4 | 1.5 | 0.75 | 1.5 | 4 | 50 | 4 | 2 |
| NNCH-2BSP-D1.5-L6 | 1.5 | 0.75 | 1.5 | 6 | 50 | 4 | |
| NNCH-2BSP-D1.5-L8 | 1.5 | 0.75 | 1.5 | 8 | 50 | 4 | 2 |
| NNCH-2BSP-D1.5-L10 | 1.5 | 0.75 | 1.5 | 10 | 50 | 4 | 22 |
| NNCH-2BSP-D1.5-L12 | 1.5 | 0.75 | 1.5 | 12 | 50 | 4 | 2 |
| NNCH-2BSP-D2-L6 | 2 | 1 | 2 | 6 | 50 | 4 | 2 |
| NNCH-2BSP-D2-L8 | 2 | 1 | 2 | 8 | 50 | 4 | 2 |
| NNCH-2BSP-D2-L10 | 2 | 1 | 2 | 10 | 50 | 4 | 2 |
| NNCH-2BSP-D2-L12 | 2 | 1 | 2 | 12 | 50 | 4 | 2 |
| NNCH-2BSP-D2-L16 | 2 | 1 | 2 | 16 | 50 | 4 | 2 |
| NNCH-2BSP-D3-L8 | 3 | 1.5 | 3 | 8 | 50 | 4 | 2 |
| NNCH-2BSP-D3-L10 | 3 | 1.5 | 3 | 10 | 50 | 4 | 2 |
| NNCH-2BSP-D3-L12 | 3 | 1.5 | 3 | 12 | 50 | 4 | 2 |
| NNCH-2BSP-D3-L16 | 3 | 1.5 | 3 | 16 | 50 | 4 | 2 |
| NNCH-2BSP-D3-L20 | 3 | 1.5 | 3 | 20 | 60 | 6 | 2 |
| NNCH-2BSP-D3-L20 | 3 | 1.5 | 3 | 20 | 75 | 6 | 2 |
| NNCH-2BSP-D3-L26 | 3 | 1.5 | 3 | 26 | 60 | 6 | 2 |
| NNCH-2BSP-D3-L26 | 3 | 1.5 | 3 | 26 | 75 | 6 | 2 |
| NNCH-2BSP-D4-L10 | 4 | 2 | 4 | 10 | 50 | 6 | 2 |
| NNCH-2BSP-D4-L12 | 4 | 2 | 4 | 12 | 50 | 6 | 2 |
| NNCH-2BSP-D4-L16 | 4 | 2 | 4 | 16 | 50 | 6 | 2 |
| NNCH-2BSP-D4-L20 | 4 | 2 | 4 | 20 | 60 | 6 | 2 |
| NNCH-2BSP-D4-L25 | 4 | 2 | 4 | 25 | 75 | 6 | 2 |
| NNCH-2BSP-D4-L30 | 4 | 2 | 4 | 30 | 75 | 6 | 2 |
| ツールシリーズ | 直径 | 半径 | コーナー半径 | 刃長さ | 有効長 | 全長 | シャンク径 | |||
| D | R | CR | LC | L1 | L | d | ||||
| NNCH 超硬・高精度超硬エンドミル | D0.1~D0.9 | 0 -0.005 | R0.05~R2 | /-0.005 | CR0.05~CR0.5 | /-0.005 | 0 0.3 | 0 0.3 | 0.5 -0.5 | h5 |
| D1~D3.5 | 0 -0.005 | |||||||||
| D4〜D10 | -0.003 -0.015 | R3~R5 | /-0.005 | CR1.0~CR3.0 | /-0.008 | 0 0.5 | 0 0.5 | |||
| D12~D20 | -0.003 -0.018 | R6~R10 | /-0.008 | |||||||

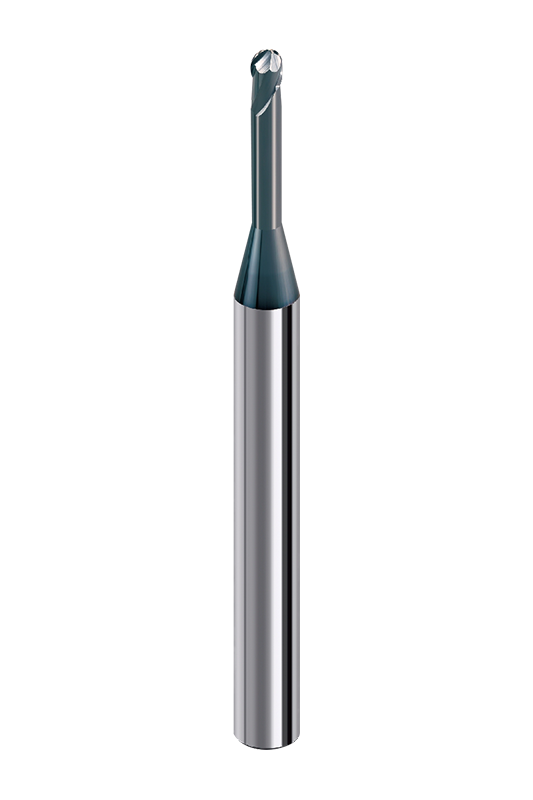

NNCH-2BSP 2 枚刃高精度深溝ボールエンドミルは、さまざまな精密加工要件を満たすためにさまざまなサイズの組み合わせを提供します。製品ラインは直径 1 mm から 4 mm まであり、さまざまな刃長、刃径、シャンク径から選択できるため、ユーザーは微細精密加工から深穴切削まで、さまざまな複雑な用途に最適な工具構成を柔軟に選択できます。
このシリーズは、切削流動性を最適化し、切削抵抗を低減するために、30°のねじれ角と組み合わせた深溝ボールノーズ設計を採用しています。小さな刃径と超微細ラジアス構造により、優れた輪郭精度と表面仕上げが保証され、特に精密金型の製造、微細加工、高精度輪郭フライス加工に適しています。また、2コーナ仕様により切りくず排出性が向上し、安定した加工性能を発揮します。
工具表面は0.2μmの超微粒子基材を使用し、高度なマイクロコーティング技術(MT)により超耐久性・高潤滑層を形成しています。鋭い切れ味を維持しながら耐摩耗性と耐熱性を効果的に向上させます。これにより、特に高硬度材料に対して優れた加工精度と表面品質が保証されます。
NNCH-2BSPシリーズは、焼き入れ鋼(HRC65まで)、プリハードン鋼、ダイス鋼、合金鋼など幅広い材質の精密切断に最適です。
企業設立
従業員

Changzhou Maton Tools Co.,Ltd. is located in the economically developed Yangtze River Delta region.The factory is located in XixiashuHigh-tech Development Zone,a well-known tool town in China. We are 2枚刃高精度深溝ボールエンドミル Manufacturers.
Magotantools take the ISO9001 quality system as the standard,under the guidanceof the business philosophy of"zero defect in products"and"zero distance in service",based on the spirit of"integrity","unity"and"exploita- tion",and follow a fair and just company style for management.Product production adopts five-axisand six-axis CNC grinding and machining centers from Germany,Switzerland,Japan,etc.,and is equipped with high-precision testing equipment such as Germany,Japan,and China,so as to meet the needs of production with high quality and quantity.
The company continuously develops various high-performance CNC tools, and has won various national awards. Professional 2枚刃高精度深溝ボールエンドミル Company. More than 10 patents,the company's products are mainly used in the defense industry, aerospace industry,automotive industry,electronic products and molds and other fields.
The company's various products are recognized and favored by well-known domestic companies.With infinite technology,infinite creation,and pursuit of excellence,Magotan tools will write future prosperity and dreams with more extraordinary confidence and high-quality quality.
お問い合わせをいただいてから平日12時間以内にご返信させていただきます。
当社はメーカーであり、自社で製造、販売しています。
We mainly produce tungsten steel milling cutters, drill bits and other hard alloy tools. Professional 2枚刃高精度深溝ボールエンドミル Manufacturers.
当社の製品は、金型産業、防衛産業、航空宇宙産業、自動車産業、電子製品およびその他の分野のほぼ全体をカバーしています。
Yes, our main focus is on customized products. We develop and produce products based on the drawings or samples provided by customers. Custom 2枚刃高精度深溝ボールエンドミル.
We have over 30 units of WALTER from Germany, Makino from Japan, ROLLMATIC from Switzerland, and TTB from Switzerland, with an annual output value of 80 million RMB. We are 2枚刃高精度深溝ボールエンドミル Company
まず、各工程後にそれぞれの検査を実施します。最終製品については、お客様の要件と国際基準に従って全数検査を実施します。
また、スペクトル分析装置や金属顕微鏡など、業界で最先端かつ完全なトップクラスの試験装置を備えており、切削工具の安定性と一貫性を確保しながら、お客様の切削工具に対する高精度の試験要件に応えます。
お見積りの際、取引方法(FOB、CIF、CNF、その他オプション)を確認させていただきます。大量生産の場合、通常、最初に30%を前払いし、船荷証券の提示時に残りの残金を支払います。支払い方法は主にT/Tを使用しますが、L/Cも受け付けます。
