• 短い刃の設計により、工具の耐摩耗性が大幅に向上し、ワークピースのより高い表面品質を実現できます。
• 主にHRC45~70の高硬度鋼材の加工、特に長時間加工が必要な精密金型部品に使用されます。

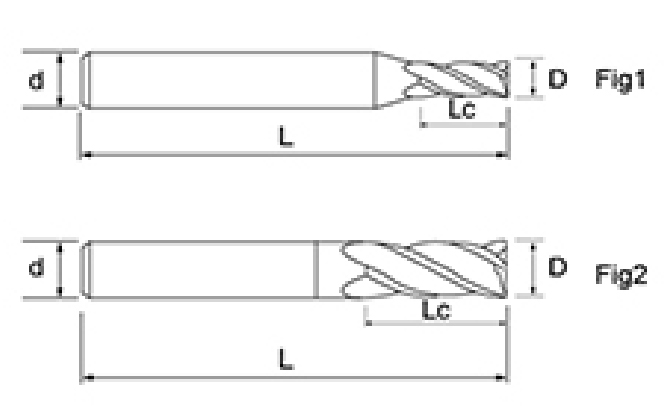

| いいえ。 | 直径 D | 刃長さ LC | 全長 L | シャンク径 d | 刃数 F |
| NNCH-4T-D1 | 1 | 3 | 50 | 4 | 4 |
| NNCH-4T-D1 | 1 | 3 | 50 | 6 | 4 |
| NNCH-4T-D1.5 | 1.5 | 4 | 50 | 4 | 4 |
| NNCH-4T-D1.5 | 1.5 | 4 | 50 | 6 | 4 |
| NNCH-4T-D2 | 2 | 6 | 50 | 4 | 4 |
| NNCH-4T-D2 | 2 | 6 | 50 | 6 | 4 |
| NNCH-4T-D2.5 | 2.5 | 6 | 50 | 4 | 4 |
| NNCH-4T-D2.5 | 2.5 | 6 | 50 | 6 | 4 |
| NNCH-4T-D3 | 3 | 8 | 50 | 4 | 4 |
| NNCH-4T-D3 | 3 | 8 | 50 | 6 | 4 |
| NNCH-4T-D4 | 4 | 10 | 50 | 4 | 4 |
| NNCH-4T-D4 | 4 | 10 | 50 | 6 | 4 |
| NNCH-4T-D5 | 5 | 13 | 50 | 6 | 4 |
| NNCH-4T-D6 | 6 | 15 | 50 | 6 | 4 |
| NNCH-4T-D8 | 8 | 20 | 60 | 8 | 4 |
| NNCH-4T-D10 | 10 | 25 | 75 | 10 | 4 |
| NNCH-4T-D12 | 12 | 30 | 75 | 12 | 4 |
| NNCH-4T-D4 | 4 | 10 | 75 | 4 | 4 |
| NNCH-4T-D4 | 4 | 10 | 75 | 6 | 4 |
| NNCH-4T-D6 | 6 | 15 | 75 | 6 | 4 |
| NNCH-4T-D8 | 8 | 20 | 75 | 8 | 4 |
| NNCH-4T-D6 | 6 | 15 | 100 | 6 | 4 |
| NNCH-4T-D8 | 8 | 20 | 100 | 8 | 4 |
| NNCH-4T-D10 | 10 | 25 | 100 | 10 | 4 |
| NNCH-4T-D12 | 12 | 30 | 100 | 12 | 4 |
| ツールシリーズ | 直径 | 半径 | コーナー半径 | 刃長さ | 有効長 | 全長 | シャンク径 | |||
| D | R | CR | LC | L1 | L | d | ||||
| NNCH 超硬・高精度超硬エンドミル | D0.1~D0.9 | 0 -0.005 | R0.05~R2 | /-0.005 | CR0.05~CR0.5 | /-0.005 | 0 0.3 | 0 0.3 | 0.5 -0.5 | h5 |
| D1~D3.5 | 0 -0.005 | |||||||||
| D4〜D10 | -0.003 -0.015 | R3~R5 | /-0.005 | CR1.0~CR3.0 | /-0.008 | 0 0.5 | 0 0.5 | |||
| D12~D20 | -0.003 -0.018 | R6~R10 | /-0.008 | |||||||

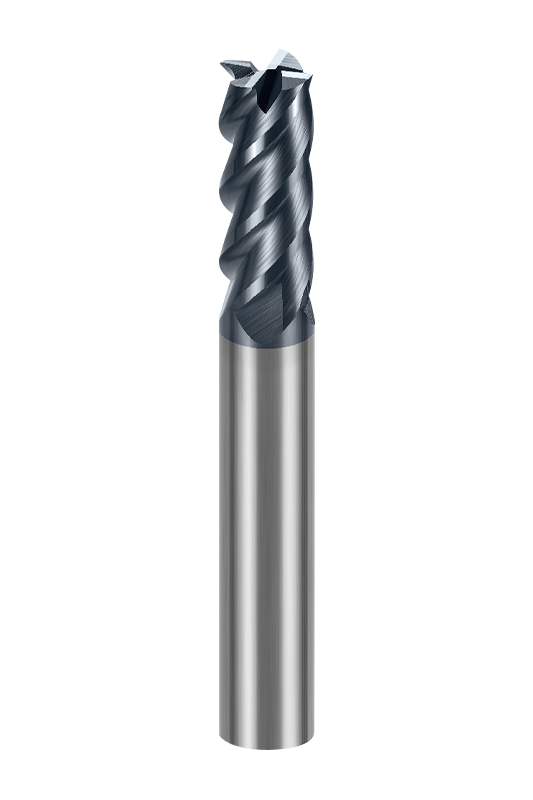

NNCH-4T 高精度 4 枚刃フラットヘッド エンドミルは、さまざまなサブモデルに対応するさまざまなサイズが用意されており、さまざまな加工ニーズに柔軟なオプションを提供します。このさまざまな仕様により、荒加工および仕上げ加工に効果的に適応できるため、生産性が向上し、工具全体のコストが削減されます。
独自の4枚刃フラットヘッド形状は高硬度材向けに設計されています。切りくず排出性を高めて振動を低減し、切削中の安定性を確保し、精度の維持と工具寿命の延長に役立ちます。
高精度の研削と高度なコーティング技術により製造されたエンドミルは、高負荷や高温下でも安定した性能を維持します。多層コーティングは硬度と耐熱性のバランスを取り、高速動作時でも優れた耐摩耗性と表面仕上げを実現し、それにより効率とワーク品質を向上させます。
このシリーズは、特に厳密な精度と安定性が要求される用途において、焼入れ鋼、合金鋼、ステンレス鋼などのさまざまな高硬度材料の加工に最適です。
企業設立
従業員

Changzhou Maton Tools Co.,Ltd. is located in the economically developed Yangtze River Delta region.The factory is located in XixiashuHigh-tech Development Zone,a well-known tool town in China. We are 高精度4枚刃フラットエンドミル Manufacturers.
Magotantools take the ISO9001 quality system as the standard,under the guidanceof the business philosophy of"zero defect in products"and"zero distance in service",based on the spirit of"integrity","unity"and"exploita- tion",and follow a fair and just company style for management.Product production adopts five-axisand six-axis CNC grinding and machining centers from Germany,Switzerland,Japan,etc.,and is equipped with high-precision testing equipment such as Germany,Japan,and China,so as to meet the needs of production with high quality and quantity.
The company continuously develops various high-performance CNC tools, and has won various national awards. Professional 高精度4枚刃フラットエンドミル Company. More than 10 patents,the company's products are mainly used in the defense industry, aerospace industry,automotive industry,electronic products and molds and other fields.
The company's various products are recognized and favored by well-known domestic companies.With infinite technology,infinite creation,and pursuit of excellence,Magotan tools will write future prosperity and dreams with more extraordinary confidence and high-quality quality.
お問い合わせをいただいてから平日12時間以内にご返信させていただきます。
当社はメーカーであり、自社で製造、販売しています。
We mainly produce tungsten steel milling cutters, drill bits and other hard alloy tools. Professional 高精度4枚刃フラットエンドミル Manufacturers.
当社の製品は、金型産業、防衛産業、航空宇宙産業、自動車産業、電子製品およびその他の分野のほぼ全体をカバーしています。
Yes, our main focus is on customized products. We develop and produce products based on the drawings or samples provided by customers. Custom 高精度4枚刃フラットエンドミル.
We have over 30 units of WALTER from Germany, Makino from Japan, ROLLMATIC from Switzerland, and TTB from Switzerland, with an annual output value of 80 million RMB. We are 高精度4枚刃フラットエンドミル Company
まず、各工程後にそれぞれの検査を実施します。最終製品については、お客様の要件と国際基準に従って全数検査を実施します。
また、スペクトル分析装置や金属顕微鏡など、業界で最先端かつ完全なトップクラスの試験装置を備えており、切削工具の安定性と一貫性を確保しながら、お客様の切削工具に対する高精度の試験要件に応えます。
お見積りの際、取引方法(FOB、CIF、CNF、その他オプション)を確認させていただきます。大量生産の場合、通常、最初に30%を前払いし、船荷証券の提示時に残りの残金を支払います。支払い方法は主にT/Tを使用しますが、L/Cも受け付けます。
