• 短い刃の設計により、工具の耐摩耗性が大幅に向上し、ワークピースのより高い表面品質を実現できます。
• 主にHRC45~70の高硬度鋼材の加工、特に長時間の加工が必要な精密金型部品に使用されます。

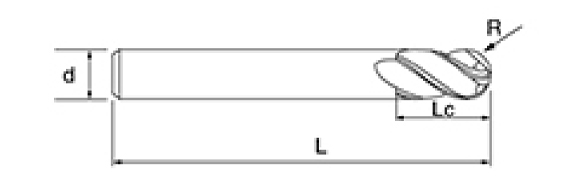

| いいえ。 | 直径 D | R角度 R | 刃長さ LC | 全長 L | シャンク径 d | 刃数 F |
| NNCH-4B-D6 | 6 | 3 | 9 | 50 | 6 | 4 |
| NNCH-4B-D8 | 8 | 4 | 12 | 60 | 8 | 4 |
| NNCH-4B-D10 | 10 | 5 | 15 | 75 | 10 | 4 |
| NNCH-4B-D12 | 12 | 6 | 18 | 75 | 12 | 4 |
| NNCH-4B-D6 | 6 | 3 | 9 | 75 | 6 | 4 |
| NNCH-4B-D8 | 8 | 4 | 12 | 75 | 8 | 4 |
| NNCH-4B-D6 | 6 | 3 | 9 | 100 | 6 | 4 |
| NNCH-4B-D8 | 8 | 4 | 12 | 100 | 8 | 4 |
| NNCH-4B-D10 | 10 | 5 | 15 | 100 | 10 | 4 |
| NNCH-4B-D12 | 12 | 6 | 18 | 100 | 12 | 4 |
| ツールシリーズ | 直径 | 半径 | コーナー半径 | 刃長さ | 有効長 | 全長 | シャンク径 | |||
| D | R | CR | LC | L1 | L | d | ||||
| NNCH 超硬・高精度超硬エンドミル | D0.1~D0.9 | 0 -0.005 | R0.05~R2 | /-0.005 | CR0.05~CR0.5 | /-0.005 | 0 0.3 | 0 0.3 | 0.5 -0.5 | h5 |
| D1〜D3.5 | 0 -0.005 | |||||||||
| D4〜D10 | -0.003 -0.015 | R3~R5 | /-0.005 | CR1.0~CR3.0 | /-0.008 | 0 0.5 | 0 0.5 | |||
| D12~D20 | -0.003 -0.018 | R6~R10 | /-0.008 | |||||||

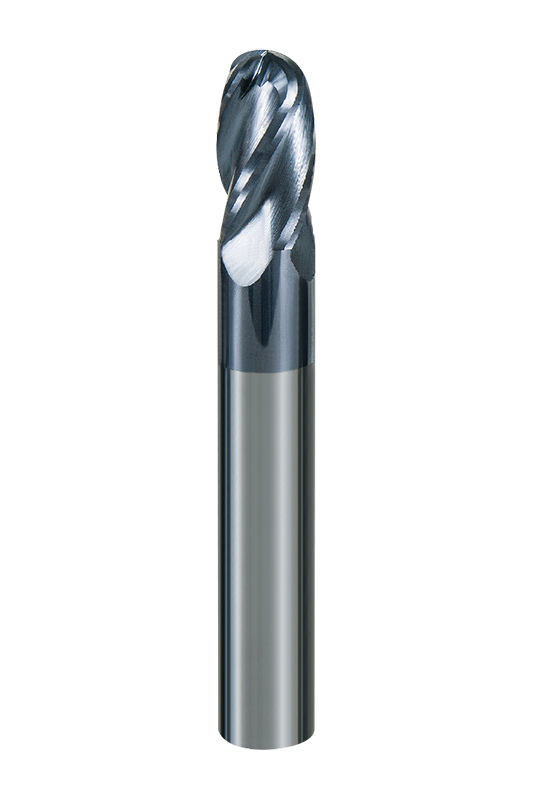

NNCH-4B 超硬 4 枚刃ボールノーズ エンドミルは、直径 6mm、8mm、10mm、12mm などのさまざまなサイズで、さまざまな半径と刃長のオプションが用意されています。この柔軟性により、ユーザーは特定の加工要件に最適な工具を選択できるため、パフォーマンスと効率が最適化されます。
このエンドミルは 4 枚刃ボールノーズ設計を採用しており、従来の 2 枚刃または 3 枚刃工具に比べて剛性と安定性に優れ、振動を最小限に抑え、仕上げ面を向上させます。 30°のねじれ角により滑らかな切削力分布が保証され、複雑な表面や微細な細部の加工に特に適しています。
超微粒子超硬材料に高性能MTコーティングを施し、摩擦を大幅に低減し、耐摩耗性、耐固着性を向上させたフライスです。 HRC65の超高硬度により、高速・重負荷の切削条件下でも刃先の切れ味を維持し、工具寿命の延長と全体の生産性の向上を実現します。
NNCH-4Bシリーズは、焼き入れ鋼(HRC45~65)、調質鋼、ステンレス鋼、合金鋼などの高硬度材の加工に最適です。
