• 高硬度および高靭性の基板製造、特別な負の角度設計、熱処理前後の材料処理、軟質材料と硬質材料の両方に汎用。
• 高速条件下、オイルミスト、水冷、油冷、その他の冷却環境下での CNC 加工に使用できます。

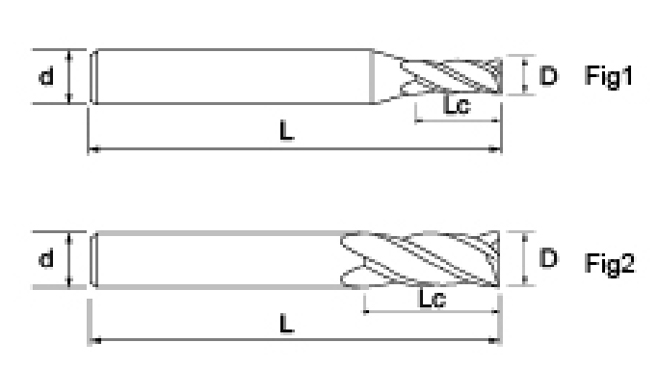

| いいえ。 | 直径 D | 刃長さ LC | 全長 L | シャンク径 d | 刃数 F |
| NNH-4T-D1 | 1 | 3 | 50 | 4 | 4 |
| NNH-4T-D1 | 1 | 3 | 50 | 6 | 4 |
| NNH-4T-D1.5 | 1.5 | 4 | 50 | 4 | 4 |
| NNH-4T-D1.5 | 1.5 | 4 | 50 | 6 | 4 |
| NNH-4T-D2 | 2 | 6 | 50 | 4 | 4 |
| NNH-4T-D2 | 2 | 6 | 50 | 6 | 4 |
| NNH-4T-D2.5 | 2.5 | 6 | 50 | 4 | 4 |
| NNH-4T-D2.5 | 2.5 | 6 | 50 | 6 | 4 |
| NNH-4T-D3 | 3 | 8 | 50 | 3 | 4 |
| NNH-4T-D3 | 3 | 8 | 50 | 4 | 4 |
| NNH-4T-D3 | 3 | 8 | 50 | 6 | 4 |
| NNH-4T-D3.5 | 3.5 | 10 | 50 | 4 | 4 |
| NNH-4T-D3.5 | 3.5 | 10 | 50 | 6 | 4 |
| NNH-4T-D4 | 4 | 10 | 50 | 4 | 4 |
| NNH-4T-D4 | 4 | 10 | 50 | 6 | 4 |
| NNH-4T-D4 | 4 | 10 | 75 | 4 | 4 |
| NNH-4T-D5 | 5 | 13 | 50 | 5 | 4 |
| NNH-4T-D5 | 5 | 13 | 50 | 6 | 4 |
| NNH-4T-D6 | 6 | 15 | 50 | 6 | 4 |
| NNH-4T-D6 | 6 | 15 | 75 | 6 | 4 |
| NNH-4T-D6 | 6 | 15 | 100 | 6 | 4 |
| NNH-4T-D8 | 8 | 20 | 60 | 8 | 4 |
| NNH-4T-D8 | 8 | 20 | 75 | 8 | 4 |
| NNH-4T-D8 | 8 | 20 | 100 | 8 | 4 |
| NNH-4T-D10 | 10 | 25 | 75 | 10 | 4 |
| NNH-4T-D10 | 10 | 25 | 100 | 10 | 4 |
| NNH-4T-D12 | 12 | 30 | 75 | 12 | 4 |
| NNH-4T-D12 | 12 | 30 | 100 | 12 | 4 |
| NNH-4T-D16 | 16 | 45 | 100 | 16 | 4 |
| NNH-4T-D20 | 20 | 45 | 100 | 20 | 4 |
| ツールシリーズ | 直径 | 半径 | コーナー半径 | 刃長さ | 有効長 | 全長 | シャンク径 | |||
| D | R | CR | LC | L1 | L | d | ||||
| NNH 高速・高硬度超硬エンドミル | D0.1~D0.9 | 0 -0.005 | R0.05~R2 | /-0.005 | CR0.05~CR0.5 | /-0.005 | 0 0.3 | 0 0.3 | 0.5 -0.5 | h5 |
| D1〜D3.5 | 0 -0.005 | |||||||||
| D4〜D10 | -0.003 -0.015 | R3~R5 | /-0.005 | CR1.0~CR3.0 | /-0.008 | 0 0.5 | 0 0.5 | |||
| D12~D20 | -0.003 -0.018 | R6~R10 | /-0.008 | |||||||

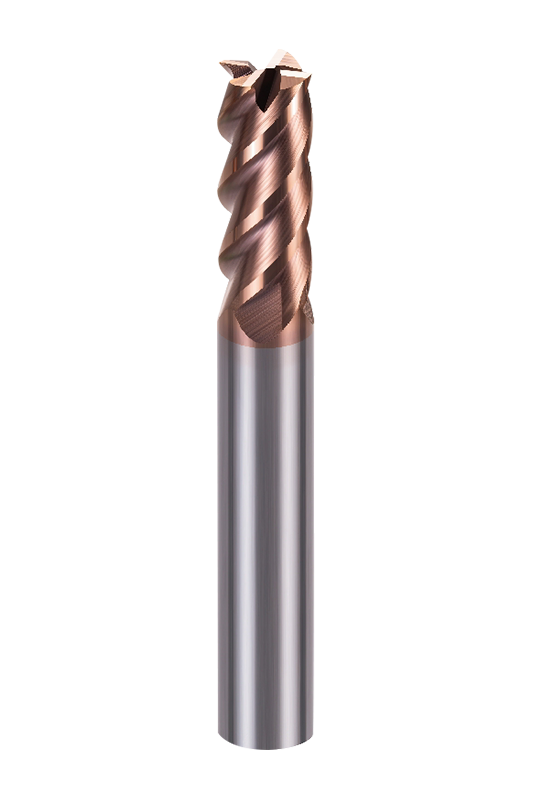

NNH-4T 4 枚刃フラット エンド ミルは、1mm から 20mm までのさまざまな直径と刃長の組み合わせがあり、さまざまな全長と刃先オプションが用意されています。この柔軟性により、さまざまな処理要件に基づいて正確な選択が可能になり、さまざまなアプリケーションで最適なパフォーマンスが保証されます。
これらのエンドミルは 4 枚刃、ねじれ角 45° で設計されており、切削抵抗を低減し、切りくず排出性を高め、よりスムーズな加工プロセスを実現します。平底形状により、エンドミル加工において優れた仕上げ面と平坦度が得られ、高精度の表面仕上げや溝切り加工に最適です。
この製品は、高度な AlTiSiN コーティング技術と 0.4μm の超微粒子基板を組み合わせており、耐摩耗性と耐酸化性が大幅に向上しています。エンドミルの硬度はHRC58まで対応しており、高強度材料の加工においても優れた切削安定性を維持し、工具寿命の延長と工具交換頻度の低減を実現します。炭素鋼、合金鋼、ステンレス鋼(HRC35~50)、焼き入れ鋼(HRC50~55)など、様々な材質の精密加工に適しています。
