• 高靭性基材と高性能コーティングを組み合わせたもので、特にプリハードン鋼の加工に適しています。
• ポジアングル切れ刃設計により、切りくず抵抗が最小限に抑えられ、より優れた外観が得られます。

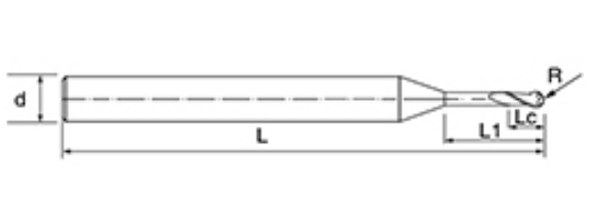

| いいえ。 | 直径 D | R角度 R | 刃長さ LC | 有効長 L1 | 全長 L | シャンク径 d | 刃数 F |
| NNH-2BSP-D1-L4 | 1 | 0.5 | 1 | 4 | 50 | 4 | 2 |
| NNH-2BSP-D1-L5 | 1 | 0.5 | 1 | 5 | 50 | 4 | 2 |
| NNH-2BSP-D1-L6 | 1 | 0.5 | 1 | 6 | 50 | 4 | 2 |
| NNH-2BSP-D1-L8 | 1 | 0.5 | 1 | 8 | 50 | 4 | 2 |
| NNH-2BSP-D1-L10 | 1 | 0.5 | 1 | 10 | 50 | 4 | 2 |
| NNH-2BSP-D1-L12 | 1 | 0.5 | 1 | 12 | 50 | 4 | 2 |
| NNH-2BSP-D1.5-L4 | 1.5 | 0.75 | 1.5 | 4 | 50 | 4 | 2 |
| NNH-2BSP-D1.5-L6 | 1.5 | 0.75 | 1.5 | 6 | 50 | 4 | 2 |
| NNH-2BSP-D1.5-L8 | 1.5 | 0.75 | 1.5 | 8 | 50 | 4 | 2 |
| NNH-2BSP-D1.5-L10 | 1.5 | 0.75 | 1.5 | 10 | 50 | 4 | 2 |
| NNH-2BSP-D1.5-L12 | 1.5 | 0.75 | 1.5 | 12 | 50 | 4 | 2 |
| NNH-2BSP-D2-L6 | 2 | 1 | 2 | 6 | 50 | 4 | 2 |
| NNH-2BSP-D2-L8 | 2 | 1 | 2 | 8 | 50 | 4 | 2 |
| NNH-2BSP-D2-L10 | 2 | 1 | 2 | 10 | 50 | 4 | 2 |
| NNH-2BSP-D2-L12 | 2 | 1 | 2 | 12 | 50 | 4 | 2 |
| NNH-2BSP-D2-L16 | 2 | 1 | 2 | 16 | 50 | 4 | 2 |
| NNH-2BSP-D2-L18 | 2 | 1 | 2 | 18 | 50 | 4 | 2 |
| NNH-2BSP-D2-L20 | 2 | 1 | 2 | 20 | 50 | 4 | 2 |
| NNH-2BSP-D2-L8 | 2 | 1 | 2 | 8 | 50 | 6 | 2 |
| NNH-2BSP-D2-L10 | 2 | 1 | 2 | 10 | 50 | 6 | 2 |
| NNH-2BSP-D2-L12 | 2 | 1 | 2 | 12 | 50 | 6 | 2 |
| NNH-2BSP-D2-L16 | 2 | 1 | 2 | 16 | 50 | 6 | 2 |
| NNH-2BSP-D2-L18 | 2 | 1 | 2 | 18 | 50 | 6 | 2 |
| NNH-2BSP-D2-L20 | 2 | 1 | 2 | 20 | 60 | 6 | 2 |
| NNH-2BSP-D3-L8 | 3 | 1.5 | 3 | 8 | 50 | 4 | 2 |
| NNH-2BSP-D3-L10 | 3 | 1.5 | 3 | 10 | 50 | 4 | 2 |
| NNH-2BSP-D3-L12 | 3 | 1.5 | 3 | 12 | 50 | 4 | 2 |
| NNH-2BSP-D3-L16 | 3 | 1.5 | 3 | 16 | 50 | 4 | 2 |
| NNH-2BSP-D3-L8 | 3 | 1.5 | 3 | 8 | 50 | 6 | 2 |
| NNH-2BSP-D3-L10 | 3 | 1.5 | 3 | 10 | 50 | 6 | 2 |
| NNH-2BSP-D3-L12 | 3 | 1.5 | 3 | 12 | 50 | 6 | 2 |
| NNH-2BSP-D3-L16 | 3 | 1.5 | 3 | 16 | 50 | 6 | 2 |
| NNH-2BSP-D3-L20 | 3 | 1.5 | 3 | 20 | 60 | 6 | 2 |
| NNH-2BSP-D3-L25 | 3 | 1.5 | 3 | 25 | 75 | 6 | 2 |
| NNH-2BSP-D3-L30 | 3 | 1.5 | 3 | 30 | 75 | 6 | 2 |
| NNH-2BSP-D4-L10 | 4 | 2 | 4 | 10 | 50 | 6 | 2 |
| NNH-2BSP-D4-L12 | 4 | 2 | 4 | 12 | 50 | 6 | 2 |
| NNH-2BSP-D4-L15 | 4 | 2 | 4 | 15 | 50 | 6 | 2 |
| NNH-2BSP-D4-L20 | 4 | 2 | 4 | 20 | 60 | 6 | 2 |
| NNH-2BSP-D4-L25 | 4 | 2 | 4 | 25 | 60 | 6 | 2 |
| NNH-2BSP-D4-L30 | 4 | 2 | 4 | 30 | 75 | 6 | 2 |
| ツールシリーズ | 直径 | 半径 | コーナー半径 | 刃長さ | 有効長 | 全長 | シャンク径 | |||
| D | R | CR | LC | L1 | L | d | ||||
| NNH 高速・高硬度超硬エンドミル | D0.1~D0.9 | 0 -0.005 | R0.05~R2 | /-0.005 | CR0.05~CR0.5 | /-0.005 | 0 0.3 | 0 0.3 | 0.5 -0.5 | h5 |
| D1〜D3.5 | 0 -0.005 | |||||||||
| D4〜D10 | -0.003 -0.015 | R3~R5 | /-0.005 | CR1.0~CR3.0 | /-0.008 | 0 0.5 | 0 0.5 | |||
| D12~D20 | -0.003 -0.018 | R6~R10 | /-0.008 | |||||||

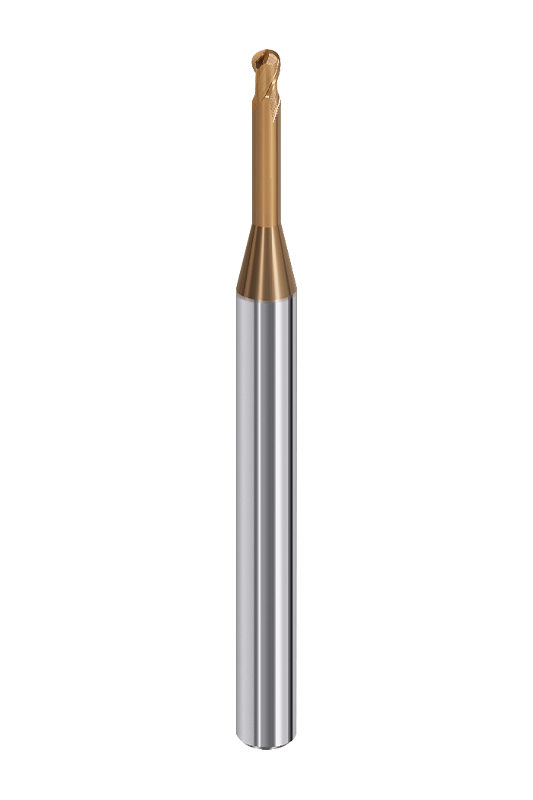

NNH-2BSP高速2枚刃深溝ボールエンドミルシリーズは、直径1mmから4mmまでの豊富なサイズと、さまざまな刃長、ネック径、有効切削長を揃えています。この柔軟なサブモデルの組み合わせにより、ユーザーは特定の加工条件に最適な工具を選択できるようになり、効率と精度が最適化されます。
このシリーズは深溝ボールノーズ形状で設計されており、複雑な曲面や空洞の加工に最適です。 30°のねじれ角により安定性と表面仕上げが最適化され、工具応力を軽減し工具寿命を延ばしながら高速加工でのスムーズな切削性能を確保します。
製造技術面では、超微粒子(0.4μm)を基材とした高度なAlTiSiNコーティング技術を採用した高速2枚刃深溝ボールエンドミルです。これにより、優れた耐摩耗性と耐酸化性が得られます。高精度な製造により鋭い切れ刃と安定した切削性能を実現し、HRC58硬度までの材料の加工に適しています。高強度超硬母材により剛性と耐衝撃性がさらに向上し、高速ミーリング時の安定性を確保します。
NNH-2BSP シリーズは、鋳鉄、合金鋼、プリハードン鋼、および一部の調質鋼 (HRC 55 まで) の加工に広く使用されています。この工具は耐摩耗性と熱安定性に優れており、特に高硬度材料の加工や高精度・高速用途に適しています。
企業設立
従業員

Changzhou Maton Tools Co.,Ltd. is located in the economically developed Yangtze River Delta region.The factory is located in XixiashuHigh-tech Development Zone,a well-known tool town in China. We are 高速2枚刃深溝ボールエンドミル Manufacturers.
Magotantools take the ISO9001 quality system as the standard,under the guidanceof the business philosophy of"zero defect in products"and"zero distance in service",based on the spirit of"integrity","unity"and"exploita- tion",and follow a fair and just company style for management.Product production adopts five-axisand six-axis CNC grinding and machining centers from Germany,Switzerland,Japan,etc.,and is equipped with high-precision testing equipment such as Germany,Japan,and China,so as to meet the needs of production with high quality and quantity.
The company continuously develops various high-performance CNC tools, and has won various national awards. Professional 高速2枚刃深溝ボールエンドミル Company. More than 10 patents,the company's products are mainly used in the defense industry, aerospace industry,automotive industry,electronic products and molds and other fields.
The company's various products are recognized and favored by well-known domestic companies.With infinite technology,infinite creation,and pursuit of excellence,Magotan tools will write future prosperity and dreams with more extraordinary confidence and high-quality quality.
お問い合わせをいただいてから平日12時間以内にご返信させていただきます。
当社はメーカーであり、自社で製造、販売しています。
We mainly produce tungsten steel milling cutters, drill bits and other hard alloy tools. Professional 高速2枚刃深溝ボールエンドミル Manufacturers.
当社の製品は、金型産業、防衛産業、航空宇宙産業、自動車産業、電子製品およびその他の分野のほぼ全体をカバーしています。
Yes, our main focus is on customized products. We develop and produce products based on the drawings or samples provided by customers. Custom 高速2枚刃深溝ボールエンドミル.
We have over 30 units of WALTER from Germany, Makino from Japan, ROLLMATIC from Switzerland, and TTB from Switzerland, with an annual output value of 80 million RMB. We are 高速2枚刃深溝ボールエンドミル Company
まず、各工程後にそれぞれの検査を実施します。最終製品については、お客様の要件と国際基準に従って全数検査を実施します。
また、スペクトル分析装置や金属顕微鏡など、業界で最先端かつ完全なトップクラスの試験装置を備えており、切削工具の安定性と一貫性を確保しながら、お客様の切削工具に対する高精度の試験要件に応えます。
お見積りの際、取引方法(FOB、CIF、CNF、その他オプション)を確認させていただきます。大量生産の場合、通常、最初に30%を前払いし、船荷証券の提示時に残りの残金を支払います。支払い方法は主にT/Tを使用しますが、L/Cも受け付けます。
