• 微小径フライスは通常、精密加工や微細構造の加工に使用されます。
• 高靭性母材と高性能コーティングの組み合わせは、プリハードン鋼の機械加工に特に適しています。
• ポジアングル切れ刃設計により、切りくず抵抗が最小限に抑えられ、より優れた外観が得られます。

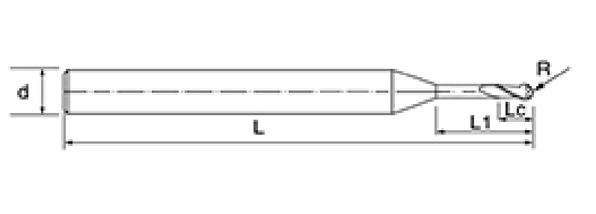

| いいえ。 | 直径 D | R角度 R | 刃長さ LC | 有効長 L1 | 全長 L | シャンク径 d | 刃数 F |
| NNH-2BSP-D0.2-L1 | 0.2 | 0.1 | 0.2 | 1 | 50 | 4 | 2 |
| NNH-2BSP-D0.2-L2 | 0.2 | 0.1 | 0.2 | 2 | 50 | 4 | 2 |
| NNH-2BSP-D0.3-L1 | 0.3 | 0.15 | 0.3 | 1 | 50 | 4 | 2 |
| NNH-2BSP-D0.3-L2 | 0.3 | 0.15 | 0.3 | 2 | 50 | 4 | 2 |
| NNH-2BSP-D0.3-L3 | 0.3 | 0.15 | 0.3 | 3 | 50 | 4 | 2 |
| NNH-2BSP-D0.3-L4 | 0.3 | 0.15 | 0.3 | 4 | 50 | 4 | 2 |
| NNH-2BSP-D0.4-L1 | 0.4 | 0.2 | 0.4 | 1 | 50 | 4 | 2 |
| NNH-2BSP-D0.4-L2 | 0.4 | 0.2 | 0.4 | 2 | 50 | 4 | 2 |
| NNH-2BSP-D0.4-L3 | 0.4 | 0.2 | 0.4 | 3 | 50 | 4 | 2 |
| NNH-2BSP-D0.4-L4 | 0.4 | 0.2 | 0.4 | 4 | 50 | 4 | 2 |
| NNH-2BSP-D0.4-L6 | 0.4 | 0.2 | 0.4 | 6 | 50 | 4 | 2 |
| NNH-2BSP-D0.5-L2 | 0.5 | 0.25 | 0.5 | 2 | 50 | 4 | 2 |
| NNH-2BSP-D0.5-L3 | 0.5 | 0.25 | 0.5 | 3 | 50 | 4 | 2 |
| NNH-2BSP-D0.5-L4 | 0.5 | 0.25 | 0.5 | 4 | 50 | 4 | 2 |
| NNH-2BSP-D0.5-L6 | 0.5 | 0.25 | 0.5 | 6 | 50 | 4 | 2 |
| NNH-2BSP-D0.6-L2 | 0.6 | 0.3 | 0.6 | 2 | 50 | 4 | 2 |
| NNH-2BSP-D0.6-L3 | 0.6 | 0.3 | 0.6 | 3 | 50 | 4 | 2 |
| NNH-2BSP-D0.6-L4 | 0.6 | 0.3 | 0.6 | 4 | 50 | 4 | 2 |
| NNH-2BSP-D0.6-L6 | 0.6 | 0.3 | 0.6 | 6 | 50 | 4 | 2 |
| NNH-2BSP-D0.6-L8 | 0.6 | 0.3 | 0.6 | 8 | 50 | 4 | 2 |
| NNH-2BSP-D0.6-L10 | 0.6 | 0.3 | 0.6 | 10 | 50 | 4 | 2 |
| NNH-2BSP-D0.8-L2 | 0.8 | 0.4 | 0.8 | 2 | 50 | 4 | 2 |
| NNH-2BSP-D0.8-L4 | 0.8 | 0.4 | 0.8 | 4 | 50 | 4 | 2 |
| NNH-2BSP-D0.8-L6 | 0.8 | 0.4 | 0.8 | 6 | 50 | 4 | 2 |
| NNH-2BSP-D0.8-L8 | 0.8 | 0.4 | 0.8 | 8 | 50 | 4 | 2 |
| NNH-2BSP-D0.8-L10 | 0.8 | 0.4 | 0.8 | 10 | 50 | 4 | 2 |
| ツールシリーズ | 直径 | 半径 | コーナー半径 | 刃長さ | 有効長 | 全長 | シャンク径 | |||
| D | R | CR | LC | L1 | L | d | ||||
| NNH 高速・高硬度超硬エンドミル | D0.1~D0.9 | 0 -0.005 | R0.05~R2 | /-0.005 | CR0.05~CR0.5 | /-0.005 | 0 0.3 | 0 0.3 | 0.5 -0.5 | h5 |
| D1~D3.5 | 0 -0.005 | |||||||||
| D4〜D10 | -0.003 -0.015 | R3~R5 | /-0.005 | CR1.0~CR3.0 | /-0.008 | 0 0.5 | 0 0.5 | |||
| D12~D20 | -0.003 -0.018 | R6~R10 | /-0.008 | |||||||

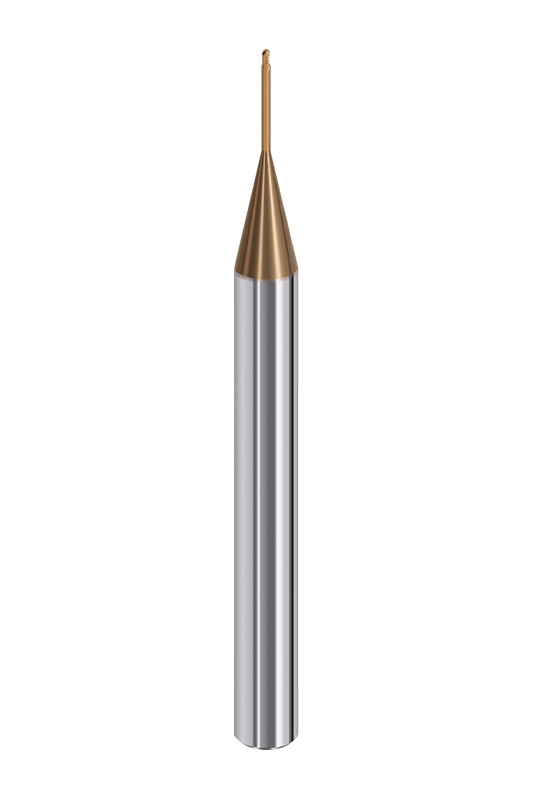

NNH-2BSP 高速 2 枚刃マイクロ径深溝ボールエンドミルは、さまざまな加工要件に合わせてさまざまなサイズの組み合わせでご利用いただけます。直径の範囲は 0.2mm ~ 0.8mm で、標準刃長とさまざまな有効切削長があり、高精度のマイクロキャビティおよび深溝加工用途向けに設計されています。
このエンドミルは、切削抵抗を最小限に抑え、優れた形状制御を保証するボールノーズ設計を特徴としており、深溝、複雑な表面、および高精度の金型加工に最適です。ねじれ角30°により切りくず排出効率が向上し、加工安定性が向上し、高速加工時の振動も低減されます。
このツールは、高度なAlTiSiNコーティング技術を採用しており、耐摩耗性と耐酸化性に優れた超微粒子(0.4μm)の基材を備えています。これにより、高速加工条件下でも切れ味を維持します。高硬度の合金材料で作られたこのエンドミルは、高負荷の切削条件下でも構造の完全性を維持でき、硬度 HRC 58 までの被削材に適しています。
NNH-2BSPエンドミルは、鋳鉄、合金鋼、ダイス鋼、プリハードン鋼、調質鋼など、さまざまな硬度の材料の加工に最適です。また、ステンレス鋼や銅合金の加工にも優れた性能を発揮し、精密製造、金型加工、エレクトロニクス産業にとって信頼性が高く効率的な切削工具となります。
