• 特殊なナイフ設計と高度な研磨および不動態化技術を組み合わせることで、振動を効果的に防止し、切りくずの固着の問題を解決します。
• 高性能アルミニウムナイフは、超高速の金属除去率と外観効果に対するより高い要件を達成できます。

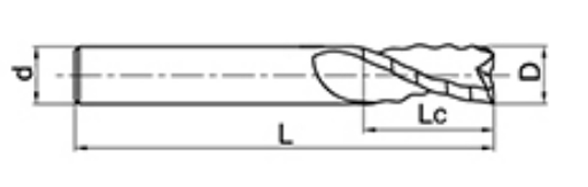

| いいえ。 | 直径 D | 刃長さ LC | 全長 L | シャンク径 d | 刃数 F |
| NNL-3T-D6 | 6 | 16 | 50 | 6 | 3 |
| NNL-3T-D8 | 8 | 20 | 60 | 8 | 3 |
| NNL-3T-D10 | 10 | 25 | 75 | 10 | 3 |
| NNL-3T-D12 | 12 | 30 | 75 | 12 | 3 |
| NNL-3T-D16 | 16 | 45 | 100 | 16 | 3 |
| NNL-3T-D20 | 20 | 45 | 100 | 20 | 3 |
| 加工品 | アルミニウム合金 | シリコン アルミニウム合金 Si≦10% | ||
| 切断速度 | 250m/分 | 200m/分 | ||
| 直径 (mm) | 回転速度 (分⁻¹) | 送り速度 (mm/分) | 回転速度 (分⁻¹) | 送り速度 (mm/分) |
| 6 | 13000 | 3000 | 10600 | 1900 |
| 8 | 10000 | 3000 | 8000 | 1900 |
| 10 | 8000 | 2900 | 6500 | 1850 |
| 12 | 6600 | 2700 | 5300 | 1700 |
| 14 | 5700 | 2600 | 4600 | 1650 |
| 16 | 5000 | 2550 | 4000 | 1600 |
| 18 | 4400 | 2500 | 3500 | 1550 |
| 20 | 4000 | 2400 | 3200 | 1500 |

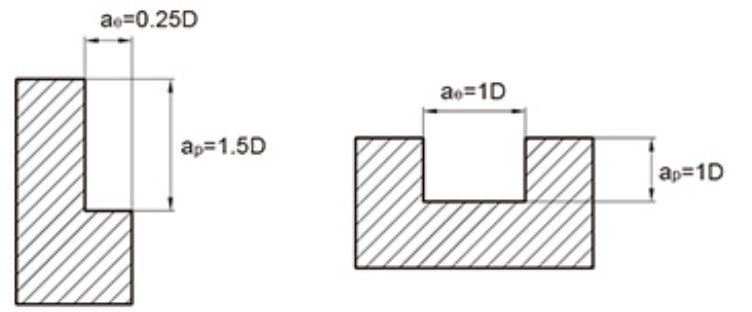

| 最大切り込み深さ | | |||
1. 上表は側面フライス加工のベンチマーク値に基づいています。スロットミーリングの切削条件は上表の切削速度の70%、送り速度の50%を基準としています。
2. 工作機械や工具ホルダは剛性、精度の高いものを使用してください。工作機械やワークの取り付け剛性が低い場合、振動や異音が発生する場合があります。現時点では、上表の推奨速度と送り速度を年々下げる必要があります。
3. 切り込みが浅い場合は、回転速度、送り速度を年々高めることができます。
4. 切削油は水溶性のものを使用してください。
5. 連続加工には側面加工を推奨します。
6. 工具の突き出し長さは干渉しない範囲で最小限にしてください。
| ツールシリーズ | 直径 | 半径 | コーナー半径 | 刃長さ | 有効長 | 全長 | シャンク径 | |||
| D | R | CR | LC | L1 | L | d | ||||
| NNL アルミ加工用超硬エンドミル | D0.5~D3.5 | 0 -0.012 | R0.5~R1.75 | /-0.005 | CR0.2~CR0.5 | /-0.005 | 0 0.3 | 0 0.5 | 0 0.5 | h6 |
| D4.0〜D10.0 | 0 -0.015 | R2.0~R5.0 | /-0.008 | CR1.0~CR5.0 | /-0.008 | 0 0.5 | ||||
| D12.0〜D20.0 | 0 -0.018 | R6.0~R10.0 | /-0.01 | |||||||

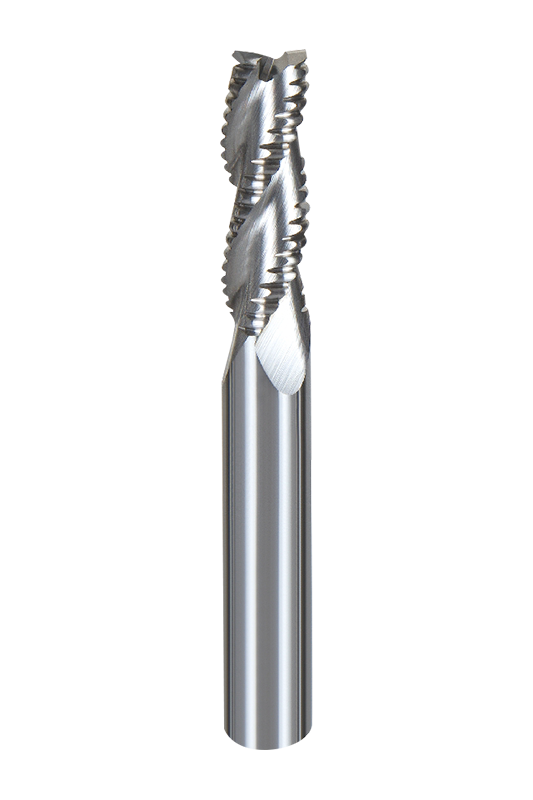

アルミ加工用3枚刃ウェーブエッジエンドミル(NNL-3W)は、直径6mmから20mmまでの幅広い仕様を備え、カッター長と全長の柔軟な組み合わせにより、さまざまな加工ニーズに対応します。高精度の仕上げ加工や効率的な荒加工など、さまざまな生産環境に合わせてカスタマイズ可能なオプションで、適切なモデルが見つかります。
35°のねじれ角と組み合わせた独自のウェーブエッジデザインは、アルミニウム材料の荒加工に最適です。振動を低減し、加工の安定性を向上させながら、材料の迅速な除去を可能にします。このツールは大きな切りくずポケットを備えており、スムーズな切りくず除去を保証して目詰まりや過熱を防ぎ、表面品質を向上させ、工具寿命を延ばします。
工具表面は高度な研磨および不動態化プロセスで処理され、耐摩耗性を向上させながら切りくず除去性能をさらに最適化します。厳選された0.5μmの高靭性耐チッピング材を使用しており、よりシャープでスムーズな切断動作を実現します。
NNL-3W 3 枚刃ウェーブエッジ エンドミルは、アルミニウム合金の荒加工用に特別に設計されており、アルミニウム加工の効率と品質の両方を大幅に向上させます。
