• 特殊なナイフ設計と高度な研磨および不動態化技術を組み合わせることで、振動を効果的に防止し、切りくずの固着の問題を解決します。
• 高性能アルミニウムナイフは、超高速の金属除去率と外観効果に対するより高い要件を達成できます。
| いいえ。 | 直径 D | 刃長さ LC | 全長 L | シャンク径 d | 刃数 F |
| NNL-3T-D1.0 | 1.0 | 3 | 50 | 4 | 3 |
| NNL-3T-D1.5 | 1.5 | 4 | 50 | 4 | 3 |
| NNL-3T-D2.0 | 2.0 | 6 | 50 | 4 | 3 |
| NNL-3T-D2.5 | 2.5 | 7 | 50 | 4 | 3 |
| NNL-3T-D3.0S | 3.0 | 7 | 50 | 4 | 3 |
| NNL-3T-D3.0 | 3.0 | 8 | 50 | 6 | 3 |
| NNL-3T-D4.0S | 4.0 | 12 | 50 | 4 | 3 |
| NNL-3T-D4.0 | 4.0 | 12 | 50 | 6 | 3 |
| NNL-3T-D4.5 | 4.5 | 12 | 50 | 6 | 3 |
| NNL-3T-D5.0 | 5.0 | 15 | 50 | 6 | 3 |
| NNL-3T-D5.5 | 5.5 | 15 | 50 | 6 | 3 |
| NNL-3T-D6.0 | 6.0 | 18 | 50 | 6 | 3 |
| NNL-3T-D7.0 | 7.0 | 20 | 60 | 8 | 3 |
| NNL-3T-D8.0 | 8.0 | 20 | 60 | 8 | 3 |
| NNL-3T-D9.0 | 9.0 | 25 | 75 | 10 | 3 |
| NNL-3T-D10.0 | 10.0 | 30 | 75 | 10 | 3 |
| NNL-3T-D11.0 | 11.0 | 30 | 75 | 12 | 3 |
| NNL-3T-D12.0 | 12.0 | 30 | 75 | 12 | 3 |
| NNL-3T-D14.0 | 14.0 | 35 | 75 | 14 | 3 |
| NNL-3T-D16.0 | 16.0 | 45 | 100 | 16 | 3 |
| NNL-3T-D18.0 | 18.0 | 45 | 100 | 18 | 3 |
| NNL-3T-D20.0 | 20.0 | 50 | 100 | 20 | 3 |
| 加工品 | アルミニウム合金 | シリコン アルミニウム合金 Si≦10% | ||
| 直径 (mm) | 回転速度 (分⁻¹) | 送り速度 (mm/分) | 回転速度 (分⁻¹) | 送り速度 (mm/分) |
| 1 | 40000 | 800 | 40000 | 600 |
| 2 | 40000 | 1200 | 32000 | 900 |
| 3 | 26500 | 1800 | 21000 | 1300 |
| 4 | 20000 | 2000 | 16000 | 1500 |
| 5 | 16000 | 1750 | 13000 | 1300 |
| 6 | 13000 | 1500 | 10600 | 1200 |
| 8 | 10000 | 1650 | 8000 | 1300 |
| 10 | 8000 | 1900 | 6500 | 1500 |
| 12 | 6600 | 1950 | 5300 | 1550 |
| 14 | 5700 | 2000 | 4600 | 1600 |
| 16 | 5000 | 2000 | 4000 | 1600 |
| 18 | 4400 | 2000 | 3500 | 1600 |
| 20 | 4000 | 2000 | 3200 | 1600 |

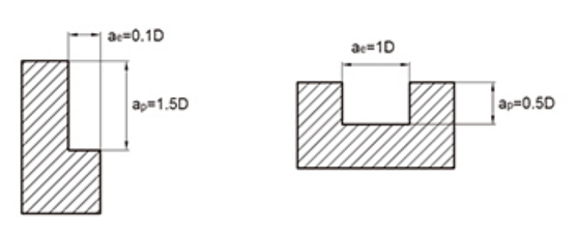

| 最大切り込み深さ | | |||
1. 上表は側面フライス加工のベンチマーク値に基づいています。スロットミーリングの切削条件は、上表の送り速度の 70% を基準としています。
2. 工作機械や工具ホルダは剛性、精度の高いものを使用してください。工作機械やワークの取り付け剛性が低い場合、振動や異音が発生する場合があります。現時点では、上表の推奨速度と送り速度を年々下げる必要があります。
3. 切り込みが浅い場合は、回転速度、送り速度を年々高めることができます。
4. 切削油は水溶性のものを使用してください。
5. 連続加工には側面加工を推奨します。
6. 工具の突き出し長さは干渉しない範囲で最小限にしてください。
| ツールシリーズ | 直径 | 半径 | コーナー半径 | 刃長さ | 有効長 | 全長 | シャンク径 | |||
| D | R | CR | LC | L1 | L | d | ||||
| NNL アルミ加工用超硬エンドミル | D0.5~D3.5 | 0 -0.012 | R0.5~R1.75 | /-0.005 | CR0.2~CR0.5 | /-0.005 | 0 0.3 | 0 0.5 | 0 0.5 | h6 |
| D4.0〜D10.0 | 0 -0.015 | R2.0~R5.0 | /-0.008 | CR1.0~CR5.0 | /-0.008 | 0 0.5 | ||||
| D12.0〜D20.0 | 0 -0.018 | R6.0~R10.0 | /-0.01 | |||||||

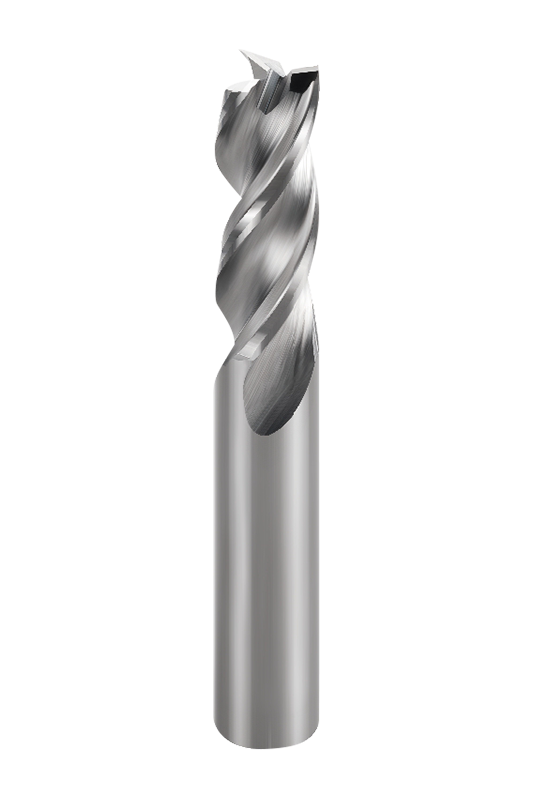

アルミフライス用3枚刃エンドミル(NNL-3Tシリーズ)は、カッター径1.0mmから20.0mmまでの多彩な仕様と、カッター長さ、シャンク径のオプションも豊富に取り揃えており、さまざまな加工ニーズに対応します。微細な彫刻であっても、大規模な材料除去であっても、効率的な加工の柔軟性要件を満たす適切なモデルが見つかります。
この工具は、独自の 3 枚刃設計と 45° のねじれ角を組み合わせており、切削抵抗分布を最適化し、加工中の振動を効果的に低減し、加工の安定性を向上させます。特殊な工具形状により切りくず除去能力が強化され、プロセス中の切りくず付着の問題が軽減され、高品質の表面仕上げを維持しながらよりスムーズな切断が保証されます。
厳選された0.5μmの高靱性で耐チッピング性の高い材料を使用し、精密研削と高度な研磨および不動態化処理を施してあるため、工具表面がより滑らかになり、切削抵抗が低減され、工具の耐久性が向上します。低摩擦特性と高精度加工の組み合わせにより、工具は高速加工でも優れた性能を維持できます。
