英国ねじ: BSP (英国標準パイプ) および BSPT (英国標準パイプテーパー) を含みます。
55°ねじ山角度:イギリスねじのねじ山角度は55°で、アメリカねじやメートルねじとは異なります。
単歯設計: このツールは一度に 1 本のねじ線を切断するため、精密加工や少量生産に適しています。
推奨加工硬度: HRC≤45°

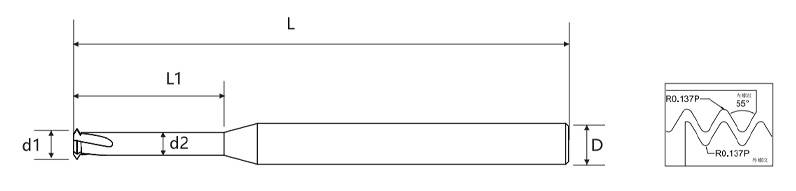

| ピッチ | 仕様 | 刃径 d1 | 回避直径 d2 | 有効刃長 L1 | ハンドル径 D | 全長 L | 刃数 |
| P0.793 | W5/32 | 3.1 | 1.9 | 8 | 4 | 50 | 4 |
| P1.058 | W3/16-24 | 3.5 | 2 | 10 | 4 | 50 | 4 |
| P1.27 | W1/4-20 | 4 | 2.2 | 12 | 4 | 50 | 4 |
| P0.907-P1.411 | W5/16-18 G1/16-28 G1/8-28 | 6 | 4.5 | 14 | 6 | 50 | 4 |
| P1.336-P1.814 | W3/8-16 W7/16-14 G1/4-19 G3/8-19 | 8 | 5.9 | 22 | 8 | 60 | 4 |
| P1.336-P1.814 | W7/16-14G1/2-14 G1/4-19 G3/4-14 G3/8-19 | 10 | 7.3 | 30 | 10 | 75 | 4 |
| P1.336-P2.54 | W5/8-11 W3/4-10 G1/2-14 G3/4-14 G1-11 | 12 | 8.2 | 38 | 12 | 75 | 4 |

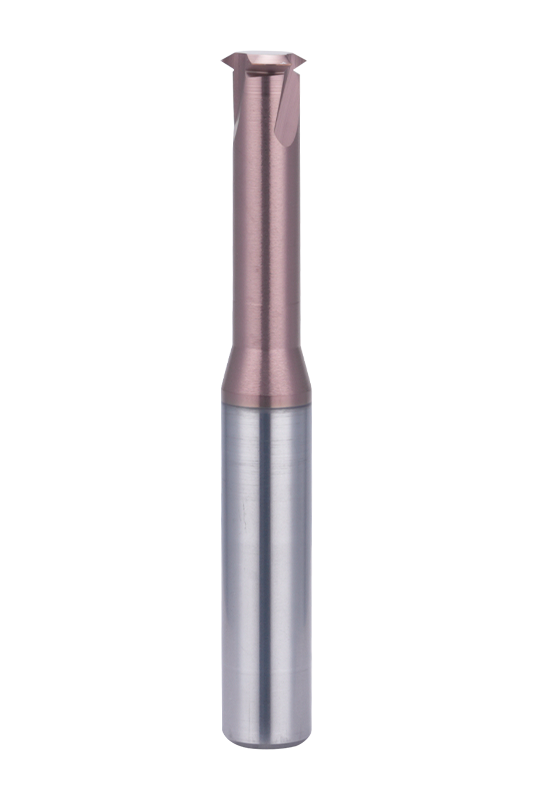

55° BSP/BSPT 単歯ねじフライスカッターは、英国標準管ねじ (BSP/BSPT) を加工するために特別に設計されており、標準の 55° ねじ山角度を満たしています。単刃切削設計により、一度に 1 つのねじを切削することで高精度加工が保証され、切削抵抗が効果的に低減されます。このため、精密製造や小ロット生産に特に適しています。
このカッターは、炭素鋼、合金鋼、ステンレス鋼、アルミニウム合金、銅合金、プラスチック、および特定の高温合金を含む幅広い材料と互換性があります。工具の寿命と加工の安定性を維持するには、HRC 45 までの硬度のワークピースに推奨します。幅広い材料適応性により、さまざまな産業用途にわたって優れた性能が保証されます。
さまざまなカッター径 (d1)、逃げ径 (d2)、有効切削長 (L1)、および全長 (L) をカバーする複数の仕様が用意されており、さまざまなねじ規格や加工要件に柔軟に対応できます。標準の円筒シャンク設計により、複数の工作機械のクランプ システムとの互換性が保証され、確実な保持と操作の容易さが実現します。
企業設立
従業員

Changzhou Maton Tools Co.,Ltd. is located in the economically developed Yangtze River Delta region.The factory is located in XixiashuHigh-tech Development Zone,a well-known tool town in China. We are 55° BSP/BSPT 単刃ねじフライス Suppliers.
Magotantools take the ISO9001 quality system as the standard,under the guidanceof the business philosophy of"zero defect in products"and"zero distance in service",based on the spirit of"integrity","unity"and"exploita- tion",and follow a fair and just company style for management.Product production adopts five-axisand six-axis CNC grinding and machining centers from Germany,Switzerland,Japan,etc.,and is equipped with high-precision testing equipment such as Germany,Japan,and China,so as to meet the needs of production with high quality and quantity.
The company continuously develops various high-performance CNC tools, and has won various national awards. Professional 55° BSP/BSPT 単刃ねじフライス Factory. More than 10 patents,the company's products are mainly used in the defense industry, aerospace industry,automotive industry,electronic products and molds and other fields.
The company's various products are recognized and favored by well-known domestic companies.With infinite technology,infinite creation,and pursuit of excellence,Magotan tools will write future prosperity and dreams with more extraordinary confidence and high-quality quality.
お問い合わせをいただいてから平日12時間以内にご返信させていただきます。
当社はメーカーであり、自社で製造、販売しています。
We mainly produce tungsten steel milling cutters, drill bits and other hard alloy tools. Professional 55° BSP/BSPT 単刃ねじフライス Suppliers.
当社の製品は、金型産業、防衛産業、航空宇宙産業、自動車産業、電子製品およびその他の分野のほぼ全体をカバーしています。
Yes, our main focus is on customized products. We develop and produce products based on the drawings or samples provided by customers. Custom 55° BSP/BSPT 単刃ねじフライス.
We have over 30 units of WALTER from Germany, Makino from Japan, ROLLMATIC from Switzerland, and TTB from Switzerland, with an annual output value of 80 million RMB. We are 55° BSP/BSPT 単刃ねじフライス Factory
まず、各工程後にそれぞれの検査を実施します。最終製品については、お客様の要件と国際基準に従って全数検査を実施します。
また、スペクトル分析装置や金属顕微鏡など、業界で最先端かつ完全なトップクラスの試験装置を備えており、切削工具の安定性と一貫性を確保しながら、お客様の切削工具に対する高精度の試験要件に応えます。
お見積りの際、取引方法(FOB、CIF、CNF、その他オプション)を確認させていただきます。大量生産の場合、通常、最初に30%を前払いし、船荷証券の提示時に残りの残金を支払います。支払い方法は主にT/Tを使用しますが、L/Cも受け付けます。
