BSPT ねじ: ISO 7-1 規格に準拠しており、パイプ接続のシールに使用される英国標準の 55° 円錐管ねじです。
ねじ角度55°:BSPTねじのねじ角度は55°であり、英国規格の管用円筒ねじ(BSP G)とは異なります。
円錐形のデザイン: BSPT ねじのテーパーは 1:16 で、ねじの緊密な嵌合によってシールが実現されます。
推奨加工硬度: HRC ≤ 45°

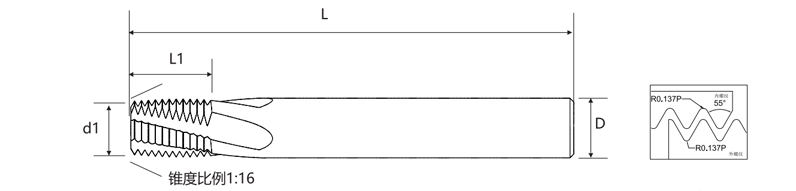

| ピッチ | 仕様 | 刃径 d1 | 有効刃長 L1 | ハンドル径 D | 全長 L | 刃数 | 底穴径 |
| 27 | 1/16" 1/8" | 5.2 | 12 | 6 | 60 | 3 | 6.3 |
| 28 | RC1/16 RC1/8 | 5.24 | 12 | 6 | 60 | 3 | 6.7 |
| 28 | RC1/8 | 7.24 | 12 | 8 | 60 | 3 | 8.7 |
| 19 | RC1/4 | 7.13 | 14 | 8 | 60 | 3 | 11.8 |
| 19 | RC1/4 RC3/8 | 8.88 | 18 | 10 | 75 | 4 | 15.2 |
| 19 | RC3/8 | 10.75 | 20 | 12 | 75 | 4 | 15.2 |
| 19 | RC3/8 | 12.75 | 20 | 14 | 90 | 4 | 19 |
| 14 | RC1/2 RC3/4 RC7/8 | 14.48 | 24 | 16 | 90 | 4 | 23 |
| 11 | 1" 1"-1/2 2" 2"-1/2 | 14.13 | 30 | 16 | 90 | 4 | 30.7 |

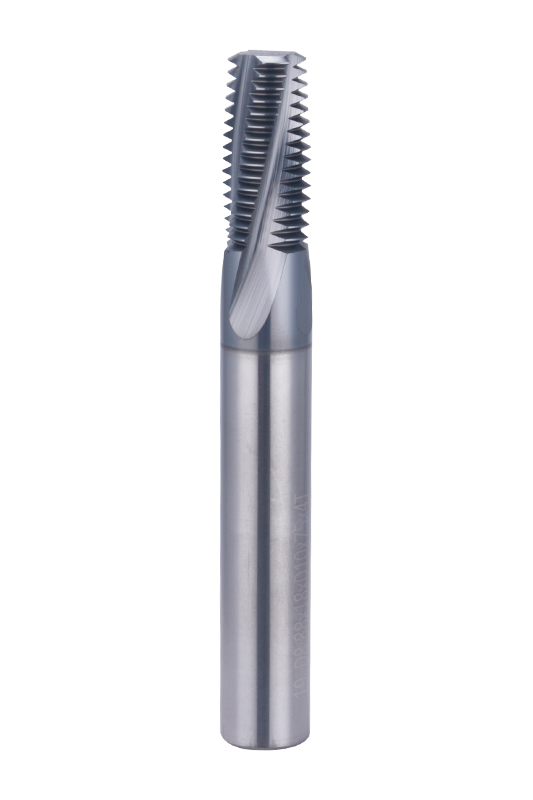

Imperial BSPT (PT.RC) 55° ねじ切りフライスカッターは ISO 7-1 規格に準拠しており、パイプ接続やシール用途で広く使用されている BSPT 55° テーパー管ねじを加工するように設計されています。 BSP G (管用平行ねじ) とは異なり、BSPT ねじは 55° のねじ角度と 1:16 のテーパ比を備えており、ねじのかみ合いとセルフロック特性により確実なシールを確保します。
炭素鋼、合金鋼、ステンレス鋼、鋳鉄、非鉄金属、プラスチックなど、さまざまな材質に適したフライスです。 RC1/16 から 2" までの複数の仕様が用意されており、多様な用途のニーズに柔軟に対応できます。工具の設計により、切削径 d1、有効切削長 L1、シャンク径 D、全長 L などのパラメータ構成を柔軟に設定できるため、加工効率とねじの品質が最適化されます。
工具の寿命と安定した加工性能を確保するには、硬度 HRC ≤45° の材料に推奨します。さまざまな作業条件に合わせて、コーティングされていないバージョンとコーティングされたバージョンの両方が利用可能です。
企業設立
従業員

Changzhou Maton Tools Co.,Ltd. is located in the economically developed Yangtze River Delta region.The factory is located in XixiashuHigh-tech Development Zone,a well-known tool town in China. We are インペリアル BSPT(PT.RC)55°ねじ切りフライス Suppliers.
Magotantools take the ISO9001 quality system as the standard,under the guidanceof the business philosophy of"zero defect in products"and"zero distance in service",based on the spirit of"integrity","unity"and"exploita- tion",and follow a fair and just company style for management.Product production adopts five-axisand six-axis CNC grinding and machining centers from Germany,Switzerland,Japan,etc.,and is equipped with high-precision testing equipment such as Germany,Japan,and China,so as to meet the needs of production with high quality and quantity.
The company continuously develops various high-performance CNC tools, and has won various national awards. Professional インペリアル BSPT(PT.RC)55°ねじ切りフライス Factory. More than 10 patents,the company's products are mainly used in the defense industry, aerospace industry,automotive industry,electronic products and molds and other fields.
The company's various products are recognized and favored by well-known domestic companies.With infinite technology,infinite creation,and pursuit of excellence,Magotan tools will write future prosperity and dreams with more extraordinary confidence and high-quality quality.
お問い合わせをいただいてから平日12時間以内にご返信させていただきます。
当社はメーカーであり、自社で製造、販売しています。
We mainly produce tungsten steel milling cutters, drill bits and other hard alloy tools. Professional インペリアル BSPT(PT.RC)55°ねじ切りフライス Suppliers.
当社の製品は、金型産業、防衛産業、航空宇宙産業、自動車産業、電子製品およびその他の分野のほぼ全体をカバーしています。
Yes, our main focus is on customized products. We develop and produce products based on the drawings or samples provided by customers. Custom インペリアル BSPT(PT.RC)55°ねじ切りフライス.
We have over 30 units of WALTER from Germany, Makino from Japan, ROLLMATIC from Switzerland, and TTB from Switzerland, with an annual output value of 80 million RMB. We are インペリアル BSPT(PT.RC)55°ねじ切りフライス Factory
まず、各工程後にそれぞれの検査を実施します。最終製品については、お客様の要件と国際基準に従って全数検査を実施します。
また、スペクトル分析装置や金属顕微鏡など、業界で最先端かつ完全なトップクラスの試験装置を備えており、切削工具の安定性と一貫性を確保しながら、お客様の切削工具に対する高精度の試験要件に応えます。
お見積りの際、取引方法(FOB、CIF、CNF、その他オプション)を確認させていただきます。大量生産の場合、通常、最初に30%を前払いし、船荷証券の提示時に残りの残金を支払います。支払い方法は主にT/Tを使用しますが、L/Cも受け付けます。
